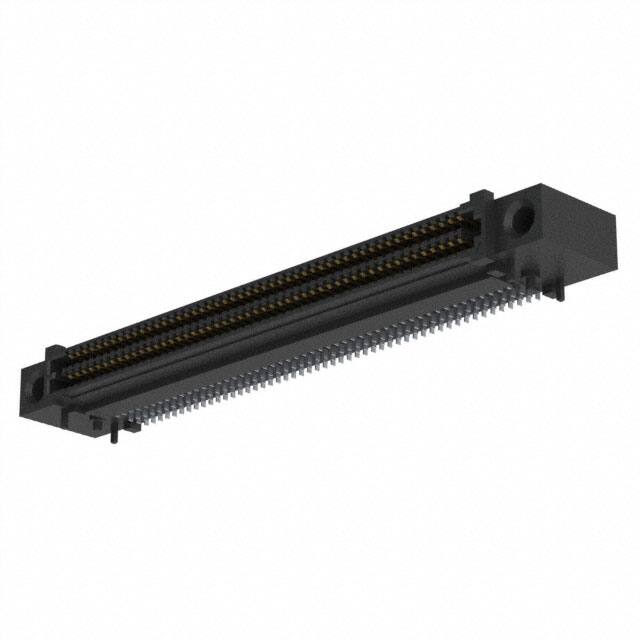

SEAF-50-01-L-04-1-RA-GP-TR

Specifications

Total Number Of Contacts

200

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness

10.0μin 0.25μm

Height Above Board

0.311 7.90mm

Yükseklik

8.04mm

Akım Değeri

1.9A

Contact Pattern

RECTANGULAR

Gender

Female

Nominal Gerilim

280V

Sıra Sayısı

4

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Min. Çalışma Sıcaklığı

-55°C

Maks. Çalışma Sıcaklığı

125°C

Pozisyon Sayısı

200

Pitch

0.050 1.27mm

Contact Resistance

17.1mOhm

Reliability

COMMERCIAL

Number Of Conductors

ONE

Rated Current Signal

2.1A

Özellikler

Board Guide, Mating Flange

Polarization Key

POLARIZED HOUSING

Ambalaj

Tape & Reel (TR)

Durability

100 Cycles

Seri

SEARAY™ SEAF

Terminal

Solder

Body Depth

0.592 inch

Insulator Color

BLACK

JESD-609 Kodu

e3

Contact Materials

Gold, Nickel

Fabrika Tedarik Süresi

3 Weeks

Number Of Pcb Rows

4

Body Breadth

0.312 inch

Montaj Tipi

Surface Mount, Right Angle

Connector Type

High Density Array, Female

Contact Finish

Gold

Mounting Option1

LOCKING

Reference Standard

UL

Plating Thickness

10μin

Radyasyon Dayanımı

No

ECCN Kodu

EAR99
