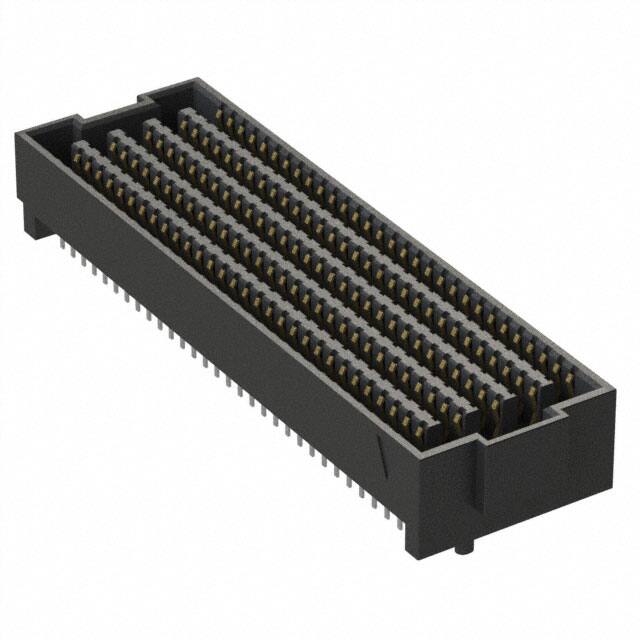

SEAF-30-05.0-S-10-1-A-K-TR

Specifications

Iec Conformance

NO

Insulation Resistance

25000000000Ohm

Stack Height Mating

7mm 8mm 8.5mm 11.5mm 12mm 14mm 16mm 18mm

Reliability

COMMERCIAL

Din Conformance

NO

Contact Resistance

5.5mOhm

Rated Current Signal

2.7A

Kurşunsuz Kodu

no

Total Number Of Contacts

300

Height Above Board

0.199 5.05mm

Max Voltage Rating Ac

240V

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness

30.0μin 0.76μm

Option

GENERAL PURPOSE

Gender

Female

Withdrawl Forcemin

LIF N

Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

1.27 mm

Uzunluk

44.76mm

Mating Contact Row Spacing

0.05 inch

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Black

Mixed Contacts

NO

Polarization Key

POLARIZED HOUSING

JESD-609 Kodu

e3

Contact Materials

COPPER ALLOY

Housing Material

Polymer

Mil Conformance

NO

Fabrika Tedarik Süresi

6 Weeks

Body Breadth

0.521 inch

Depth

13.28mm

Maks. Çalışma Sıcaklığı

125°C

Pozisyon Sayısı

300

Min. Çalışma Sıcaklığı

-55°C

Sıra Sayısı

10

Pitch

0.050 1.27mm

Number Of Conductors

ONE

Orientation

Straight

Özellikler

Board Guide, Pick and Place
