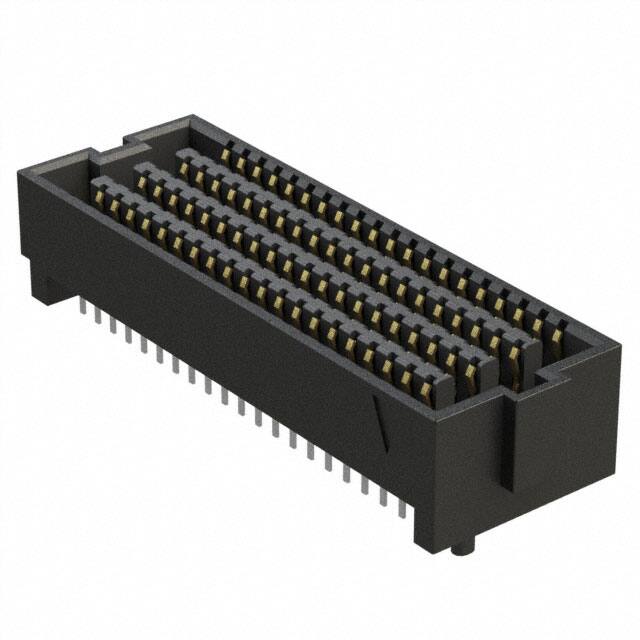

SEAF-20-06.5-S-08-2-A-K-TR

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Black

Reference Standard

UL

Uzunluk

32.06mm

Mixed Contacts

NO

Housing Material

Polymer

Contact Materials

Copper

JESD-609 Kodu

e3

Polarization Key

POLARIZED HOUSING

Depth

10.74mm

Fabrika Tedarik Süresi

6 Weeks

Body Breadth

0.421 inch

Mil Conformance

NO

Contact Resistance

5.5mOhm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Stack Height Mating

8.5mm 9.5mm 10mm 13mm 13.5mm 15.5mm 17.5mm 19.5mm

Din Conformance

NO

Reliability

COMMERCIAL

Insulation Resistance

25000000000Ohm

Iec Conformance

NO

Kurşunsuz Kodu

yes

Rated Current Signal

2.7A

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness

30.0μin 0.76μm

Height Above Board

0.258 6.55mm

Max Voltage Rating Ac

240V

Total Number Of Contacts

160

Additional Feature

ROHS COMPLIANT

Withdrawl Forcemin

LIF N

Akım Değeri

2.3A

Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Gender

Receptacle

Nominal Gerilim

240V

Row Spacing

1.27 mm

Contact Style

BELLOWED TYPE

Radyasyon Dayanımı

No

Plating Thickness

30μin

Bodyshell Style

SOCKET

Parça Durumu

Active
