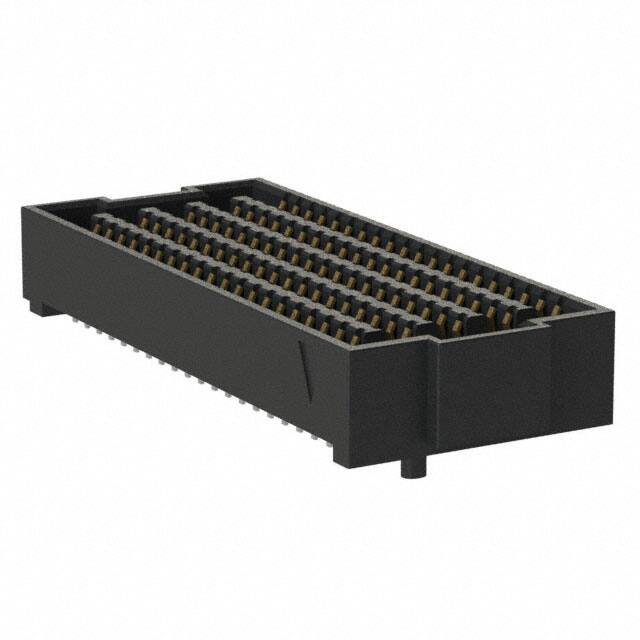

SEAF-20-06.5-L-10-1-A-K-TR

Specifications

Ambalaj

Tape & Reel (TR)

Polarization Key

POLARIZED HOUSING

JESD-609 Kodu

e3

REACH Uyumluluk Kodu

not_compliant

Insulator Color

BLACK

Body Depth

0.199 inch

Seri

SEARAY™ SEAF

Mil Conformance

NO

Montaj Tipi

Surface Mount

Body Breadth

0.423 inch

Number Of Pcb Rows

10

Fabrika Tedarik Süresi

3 Weeks

Contact Finish

Gold

Connector Type

High Density Array, Female

Mating Contact Row Spacing

0.05 inch

Bodyshell Style

SOCKET

Contact Style

BELLOWED TYPE

Mounting Option1

LOCKING

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Mixed Contacts

NO

Body Length Or Diameter

1.229 inch

Total Number Of Contacts

200

Height Above Board

0.258 6.55mm

Contact Finish Thickness

10.0μin 0.25μm

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Pcb Contact Row Spacing

1.27 mm

Filter Feature

NO

Contact Pattern

RECTANGULAR

Pozisyon Sayısı

200

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Iec Conformance

NO

Sıra Sayısı

10

Din Conformance

NO

Stack Height Mating

8.5mm 9.5mm 10mm 13mm 13.5mm 15.5mm 17.5mm 19.5mm

Pitch

0.050 1.27mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE
