Volume pricing
- 1+ pcs$7.76
- 10+ pcs$7.32
- 100+ pcs$6.90
- 500+ pcs$6.51
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

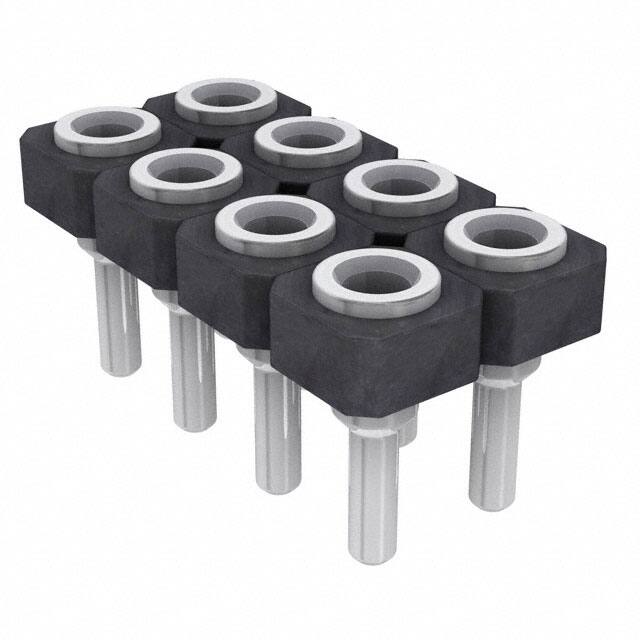

Specifications
- Housing Material
- Polyester
- Kurşunsuz Kodu
- yes
- Terminal
- Solder
- Seri
- SDL
- Contact Type
- Female Socket
- Max Current Rating
- 1A
- Genişlik
- 5.08mm
- Row Spacing Mating
- 0.100 (2.54mm)
- Contact Length Post
- 0.095 2.41mm
- Fastening Type
- Push-Pull
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Uzunluk
- 10.16mm
- Radyasyon Dayanımı
- No
- Mil Conformance
- NO
- Insulation Height
- 0.095 2.41mm
- Orientation
- Straight
- Pozisyon Sayısı
- 8
- RoHS Durumu
- ROHS3 Compliant
- Mixed Contacts
- NO
- Additional Feature
- LOW PROFILE
- Number Of Positions Loaded
- All
- Filter Feature
- NO
- Ambalaj
- Bulk
- Parça Durumu
- Discontinued
- Connector Type
- Receptacle
- Iec Conformance
- NO
- Option
- GENERAL PURPOSE
- Depth
- 5.08mm
- Reach Svhc
- No SVHC
- Kurşunsuz
- Lead Free
- Çalışma Sıcaklığı
- -55°C~105°C
- Contact Finish Mating
- Tin
- Contact Materials
- Beryllium Copper
- Montaj
- Through Hole
- Contact Shape
- Circular
- Pitch Mating
- 0.100 2.54mm
- Contact Resistance
- 10mOhm
- Style
- Board to Board
- Din Conformance
- NO
- Sıra Sayısı
- 2
