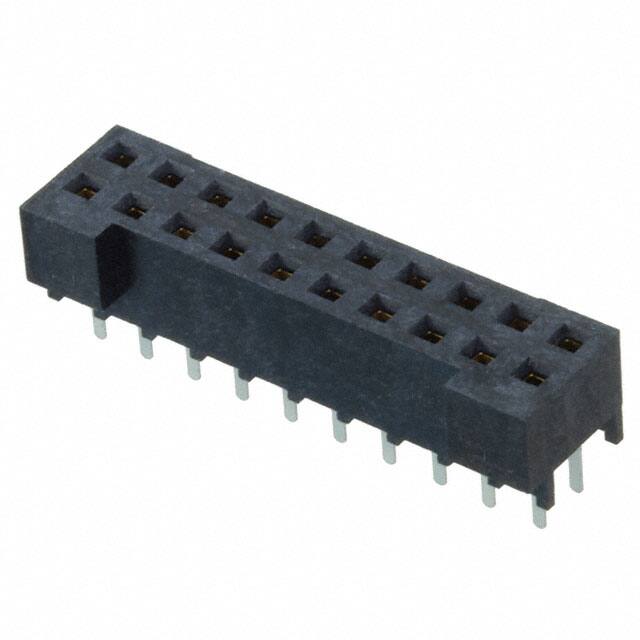

S2M-110-01-L-D

Specifications

Montaj Tipi

Through Hole

Pozisyon Sayısı

20

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Body Depth

0.178 inch

Reliability

COMMERCIAL

Pitch Mating

0.079 2.00mm

Seri

Tiger Eye™ S2M

Reference Standard

UL

Montaj

Through Hole

Mil Conformance

NO

Contact Length Post

0.082 2.08mm

Withdrawl Forcemin

.417 N

Gender

Receptacle

Terminal

Solder

Din Conformance

NO

Plating Thickness

10μin

Option

GENERAL PURPOSE

Filter Feature

NO

Reach Svhc

No SVHC

Mixed Contacts

NO

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

3 Weeks

Mating Contact Pitch

0.079 inch

Iec Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Housing Material

Polymer

Insulation Color

Black

Contact Type

Female Socket

Uzunluk

20.35mm

Ambalaj

Tube

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2011

Number Of Positions Loaded

All

Contact Resistance

10mOhm

Insulation Height

0.178 4.51mm

Pcb Contact Pattern

RECTANGULAR

Row Spacing Mating

0.079 (2.00mm)

Connector Type

Socket
