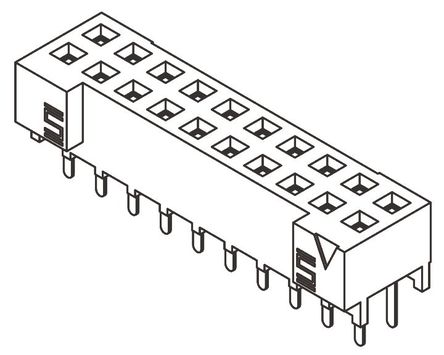

S2M-107-01-L-D

Specifications

Withdrawl Forcemin

.417 N

Contact Length Post

0.082 2.08mm

Mil Conformance

NO

Montaj

Through Hole

Reference Standard

UL

Seri

Tiger Eye™ S2M

Pitch Mating

0.079 2.00mm

Reliability

COMMERCIAL

Body Depth

0.178 inch

Pozisyon Sayısı

14

Montaj Tipi

Through Hole

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Mixed Contacts

NO

Iec Conformance

NO

Mating Contact Pitch

0.079 inch

Fabrika Tedarik Süresi

3 Weeks

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Reach Svhc

No SVHC

Option

GENERAL PURPOSE

Filter Feature

NO

Din Conformance

NO

Terminal

Solder

Gender

Receptacle

Plating Thickness

10μin

Insulation Height

0.178 4.51mm

Pcb Contact Pattern

RECTANGULAR

Contact Resistance

10mOhm

Number Of Positions Loaded

All

Yayın Yılı

2011

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Female Socket

Insulation Color

Black

Ambalaj

Tube

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insertion Forcemax

.556 N

Contact Shape

Square

Current Rating Amps

2.6A per Contact

Contact Finish Thickness Mating

10.0μin 0.25μm
