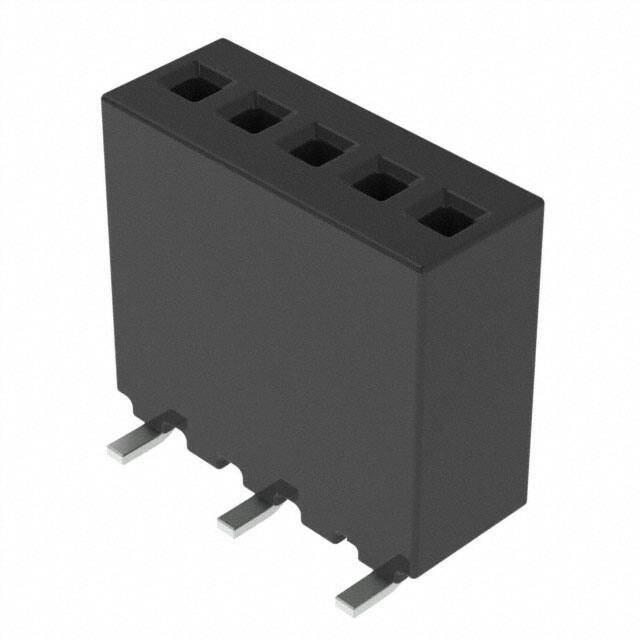

RSM-105-02-L-S

Specifications

Number Of Conductors

ONE

Iec Conformance

NO

Fabrika Tedarik Süresi

3 Weeks

Total Number Of Contacts

5

Seri

RSM

Montaj Tipi

Surface Mount

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Parça Durumu

Active

Contact Type

Female Socket

Contact Finish Mating

Gold

Mil Conformance

NO

Sıra Sayısı

1

Insertion Forcemax

.973 N

Depth

2.54mm

Pozisyon Sayısı

5

Insulation Materials

Liquid Crystal Polymer (LCP)

Orientation

Straight

Reliability

COMMERCIAL

Contact Shape

Square

Housing Material

Polymer

Uzunluk

6.6mm

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Contact Finish Post

Tin

Yayın Yılı

2013

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Insulation Height

0.240 6.10mm

Style

Board to Board

Option

GENERAL PURPOSE

Mounting Option1

LOCKING

Connector Type

Receptacle

Current Rating Amps

3.1A per Contact

Filter Feature

NO

Reference Standard

UL, CSA

Reach Svhc

No SVHC

Fastening Type

Push-Pull
