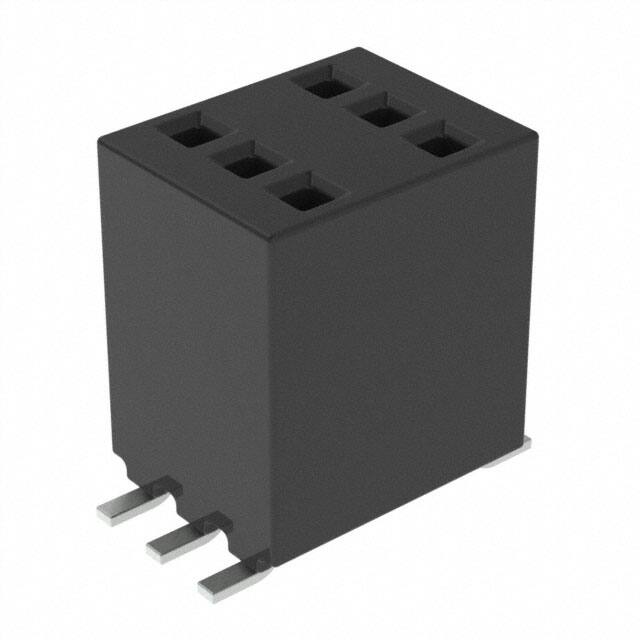

RSM-103-02-L-D

Specifications

Terminal

Solder

Fastening Type

Push-Pull

Radyasyon Dayanımı

No

Çalışma Sıcaklığı

-55°C~125°C

Insulation Color

Black

Ambalaj

Bulk

Din Conformance

NO

Pitch Mating

0.050 1.27mm

JESD-609 Kodu

e3

Contact Resistance

10mOhm

Contact Finish Thickness Mating

10.0μin 0.25μm

Mixed Contacts

NO

Contact Materials

Phosphor Bronze

Contact Finish Post

Tin

Yayın Yılı

2013

Withdrawl Forcemin

.417 N

Number Of Positions Loaded

All

Style

Board to Board

Mating Contact Pitch

0.05 inch

Insulation Height

0.240 6.10mm

Row Spacing Mating

0.100 (2.54mm)

Reference Standard

UL, CSA

Current Rating Amps

3.1A per Contact

Filter Feature

NO

Option

GENERAL PURPOSE

Mounting Option1

LOCKING

Connector Type

Receptacle

Reach Svhc

No SVHC

Mil Conformance

NO

Insulation Materials

Liquid Crystal Polymer (LCP)

Sıra Sayısı

2

Insertion Forcemax

.973 N

Depth

5.08mm

Pozisyon Sayısı

6

Orientation

Straight

Reliability

COMMERCIAL

Contact Shape

Square

Uzunluk

4.06mm

Kurşunsuz Kodu

yes

Plating Thickness

10μin
