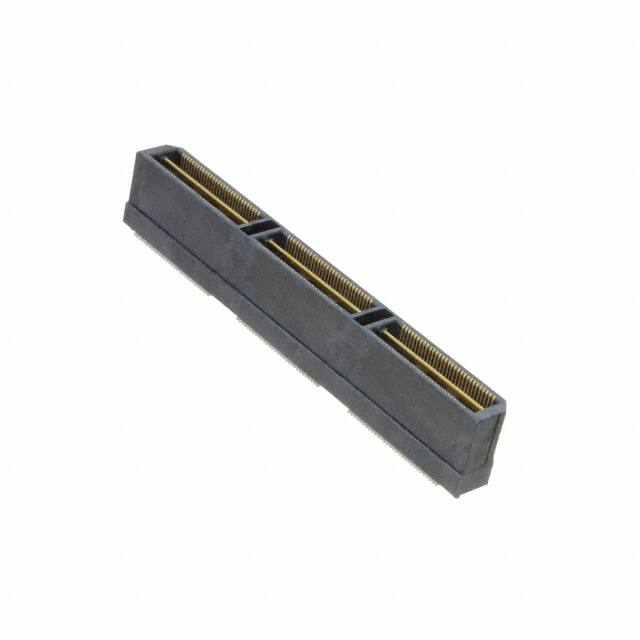

QTH-090-03-F-D-A

Specifications

Max Voltage Rating Ac

125V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Kurşunsuz Kodu

yes

Filter Feature

NO

Maks. Çalışma Sıcaklığı

125°C

Rated Current Signal

2A

Plating Thickness

FLASH inch

Connector Type

Differential Pair Array, Male

Contact Finish

Gold

Mil Conformance

NO

Number Of Conductors

ONE

Montaj Tipi

Surface Mount

Total Number Of Contacts

180

Iec Conformance

NO

Terminal

Solder

Contact Style

CENTRONIC

Reliability

COMMERCIAL

Mixed Contacts

NO

Depth

7.11mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Stack Height Mating

11mm

Din Conformance

NO

Pitch

0.020 0.50mm

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e3

Sıra Sayısı

2

Contact Finish Thickness

3.00μin 0.076μm

Pozisyon Sayısı

180

Contact Materials

Bronze

Uzunluk

60mm

RoHS Durumu

ROHS3 Compliant

Housing Material

Polymer

Height Above Board

0.404 10.27mm

Additional Feature

ELP, POLARIZED

Özellikler

Board Guide, Ground Bus (Plane)

Fabrika Tedarik Süresi

3 Weeks

Gender

Male

Min. Çalışma Sıcaklığı

-55°C

Contact Pattern

RECTANGULAR
