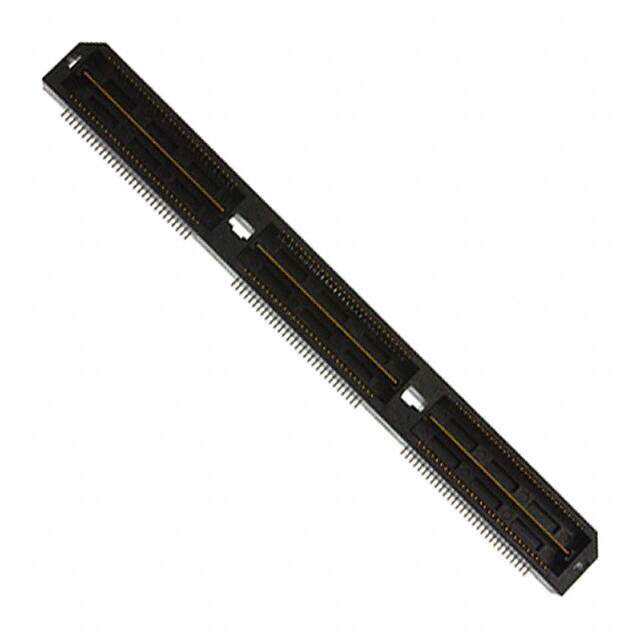

QTH-090-01-L-D-A

Specifications

Max Voltage Rating Ac

125V

Yayın Yılı

2008

Dielectric Withstanding Voltage

375VAC V

Parça Durumu

Active

Kurşunsuz Kodu

yes

Plating Thickness

10μin

Connector Type

Header, Outer Shroud Contacts

Contact Finish

Gold

Total Number Of Contacts

180

Terminal

Solder

Iec Conformance

NO

Housing Color

Black

Polarization Key

POLARIZED HOUSING

Depth

5.97mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Stack Height Mating

5mm

Din Conformance

NO

Pitch

0.020 0.50mm

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Voltage Rated Ac

125V

Contact Materials

Gold, Nickel

RoHS Durumu

ROHS3 Compliant

Housing Material

Polymer

Insulation Resistance

5000000000Ohm

Height Above Board

0.160 4.06mm

Additional Feature

ELP, POLARIZED

Ul Flammability Code

94V-0

Fabrika Tedarik Süresi

3 Weeks

Akım Değeri

1A

Kurşunsuz

Lead Free

Reference Standard

UL, CSA

Nominal Gerilim

175V

Montaj

Surface Mount

Number Of Pcb Rows

2

Option

GENERAL PURPOSE

Radyasyon Dayanımı

No

Filter Feature

NO

Maks. Çalışma Sıcaklığı

125°C

Rated Current Signal

1A
