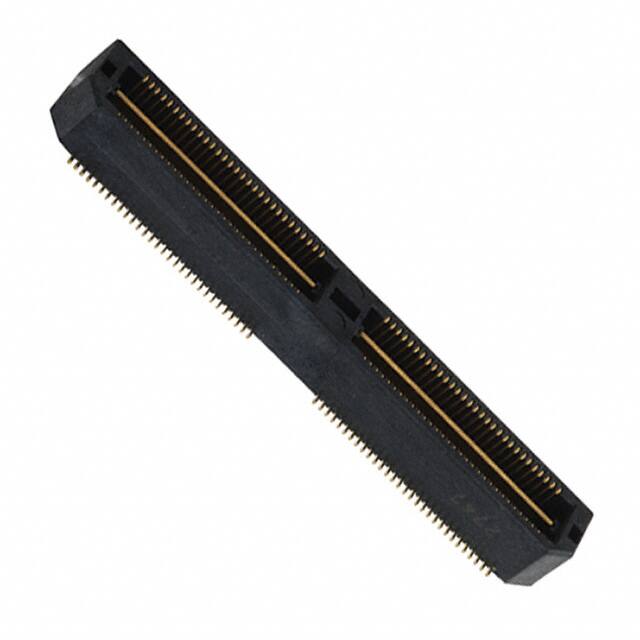

QTH-060-01-L-D-A

Specifications

Insulation Resistance

5000000000Ohm

Housing Material

Polymer

Additional Feature

ELP, POLARIZED

Height Above Board

0.160 4.06mm

RoHS Durumu

ROHS3 Compliant

Contact Materials

Bronze

Pcb Contact Pattern

RECTANGULAR

Voltage Rated Ac

125V

Sıra Sayısı

2

Stack Height Mating

5mm

Din Conformance

NO

Pitch

0.020 0.50mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Number Of Pcb Rows

2

Montaj

Surface Mount

Nominal Gerilim

125V

Reference Standard

UL, CSA

Akım Değeri

1A

Fabrika Tedarik Süresi

3 Weeks

Kurşunsuz

Lead Free

Connector Type

Header, Outer Shroud Contacts

Plating Thickness

10μin

Parça Durumu

Active

Kurşunsuz Kodu

yes

Dielectric Withstanding Voltage

375VAC V

Yayın Yılı

2008

Max Voltage Rating Ac

125V

Depth

5.97mm

Polarization Key

POLARIZED HOUSING

Max Current Rating

1A

Housing Color

Black

Total Number Of Contacts

120

Iec Conformance

NO

Terminal

Solder

Contact Finish

Gold

Bodyshell Style

RECEPTACLE

Özellikler

Board Guide, Ground Bus (Plane)

Uzunluk

40mm
