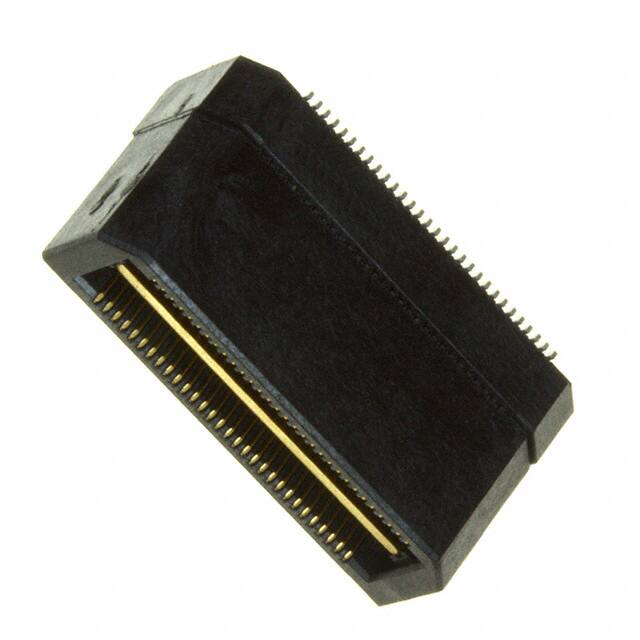

QTH-030-03-L-D-A-K-TR

Specifications

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Number Of Pcb Rows

2

Reference Standard

UL, CSA

HTS Kodu

8536.69.40.40

Fabrika Tedarik Süresi

3 Weeks

Akım Değeri

1A

Ul Flammability Code

94V-0

Mounting Option2

LOCKING

Housing Material

Polymer

Insulation Resistance

5000000000Ohm

Height Above Board

0.404 10.27mm

Additional Feature

ROHS COMPLIANT, T/R PKG

RoHS Durumu

ROHS3 Compliant

Contact Materials

Bronze

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Voltage Rated Ac

125V

Mounting Option1

DETENT

Stack Height Mating

11mm

Din Conformance

NO

Pitch

0.020 0.50mm

Polarization Key

POLARIZED HOUSING

Depth

5.97mm

Total Number Of Contacts

60

Terminal

Solder

Iec Conformance

NO

Contact Finish

Gold

Plating Thickness

10μin

Connector Type

Header, Outer Shroud Contacts

Parça Durumu

Active

Kurşunsuz Kodu

yes

Dielectric Withstanding Voltage

375VAC V

Yayın Yılı

2008

Max Voltage Rating Ac

125V

Orientation

Straight

Board Mounting Option

PEG

Seri

Q Strip® QTH

Ambalaj

Tape & Reel (TR)

Min. Çalışma Sıcaklığı

-55°C
