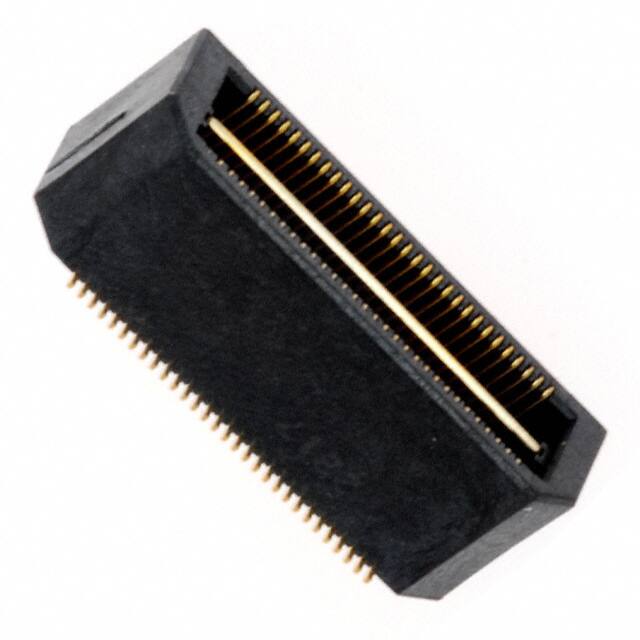

QTH-030-02-L-D-A

Specifications

Nominal Gerilim

125V

Reference Standard

UL, CSA

Akım Değeri

1A

Fabrika Tedarik Süresi

3 Weeks

Kurşunsuz

Lead Free

Number Of Pcb Rows

2

Montaj

Surface Mount

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Stack Height Mating

8mm

Din Conformance

NO

Pitch

0.020 0.50mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

Bronze

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Voltage Rated Ac

125V

Housing Material

Polymer

Insulation Resistance

5000000000Ohm

Height Above Board

0.286 7.26mm

Additional Feature

ELP, POLARIZED

RoHS Durumu

ROHS3 Compliant

Contact Finish

Gold

Total Number Of Contacts

60

Terminal

Solder

Iec Conformance

NO

Depth

7.11mm

Polarization Key

POLARIZED HOUSING

Housing Color

Black

Max Voltage Rating Ac

125V

Yayın Yılı

2008

Dielectric Withstanding Voltage

375VAC V

Connector Type

Header, Outer Shroud Contacts

Plating Thickness

10μin

Parça Durumu

Active

Kurşunsuz Kodu

yes

Gender

Male

Ambalaj

Tray

Min. Çalışma Sıcaklığı

-55°C

Contact Pattern

RECTANGULAR
