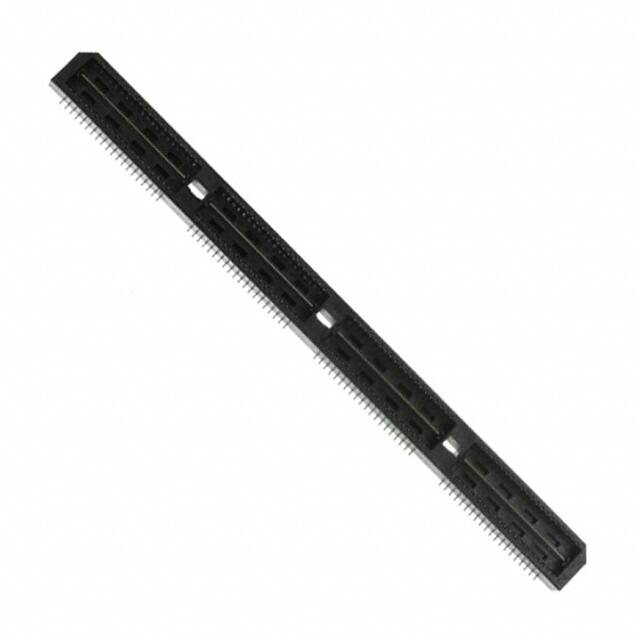

QTE-080-01-L-D-A

Specifications

Contact Finish

Gold

Total Number Of Contacts

160

Terminal

Solder

Iec Conformance

NO

Housing Color

Black

Polarization Key

POLARIZED HOUSING

Depth

5.97mm

Max Voltage Rating Ac

225V

Yayın Yılı

2003

Dielectric Withstanding Voltage

675VAC V

Contact Resistance

15mOhm

Parça Durumu

Active

Kurşunsuz Kodu

yes

Plating Thickness

10μin

Connector Type

Header, Outer Shroud Contacts

Fabrika Tedarik Süresi

3 Weeks

Akım Değeri

10.1A

Kurşunsuz

Lead Free

Reference Standard

UL, CSA

Nominal Gerilim

225V

Montaj

Surface Mount

Number Of Pcb Rows

2

Option

GENERAL PURPOSE

Radyasyon Dayanımı

No

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Stack Height Mating

5mm

Din Conformance

NO

Pitch

0.031 0.80mm

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Voltage Rated Ac

225V

Contact Materials

Bronze

RoHS Durumu

ROHS3 Compliant

Housing Material

Polymer

Insulation Resistance

5000000000Ohm

Height Above Board

0.168 4.27mm

Additional Feature

E.L.P., POLARIZED

Mil Conformance

NO

Number Of Conductors

ONE

Montaj Tipi

Surface Mount
