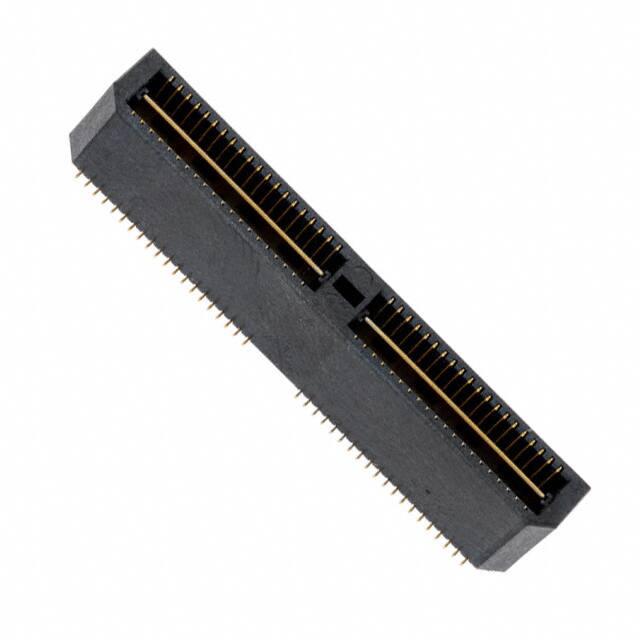

QTE-040-02-L-D-A

Specifications

Total Number Of Contacts

80

Terminal

Solder

Iec Conformance

NO

Contact Finish

Gold

Polarization Key

POLARIZED HOUSING

Depth

5.97mm

Housing Color

Black

Yayın Yılı

2008

Max Voltage Rating Ac

225V

Plating Thickness

10μin

Connector Type

Header, Outer Shroud Contacts

Parça Durumu

Active

Kurşunsuz Kodu

yes

Dielectric Withstanding Voltage

675VAC V

Contact Resistance

15mOhm

Reference Standard

UL, CSA

Nominal Gerilim

225V

Fabrika Tedarik Süresi

3 Weeks

Akım Değeri

2A

Kurşunsuz

Lead Free

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Number Of Pcb Rows

2

Montaj

Surface Mount

Contact Materials

Bronze

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Voltage Rated Ac

225V

Stack Height Mating

8mm

Din Conformance

NO

Pitch

0.031 0.80mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Housing Material

Polymer

Insulation Resistance

5000000000Ohm

Height Above Board

0.286 7.26mm

Additional Feature

E.L.P., POLARIZED

RoHS Durumu

ROHS3 Compliant

Contact Style

CENTRONIC

Durability

500 Cycles

Number Of Conductors

ONE
