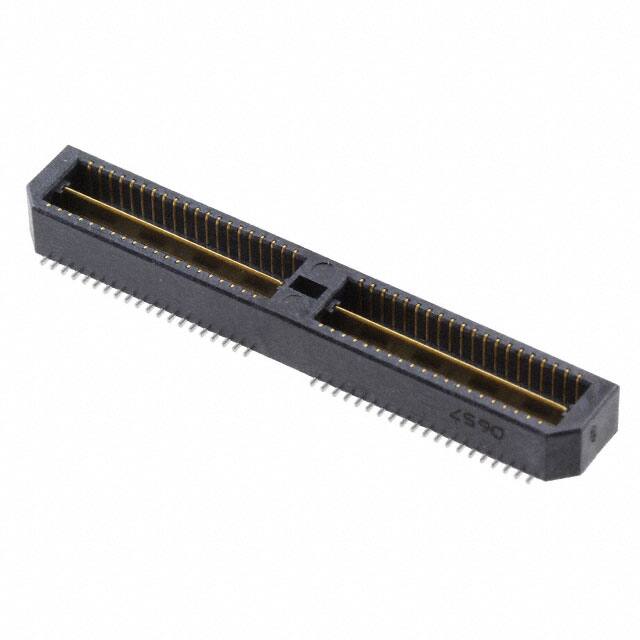

QTE-040-01-F-D-A

Specifications

Reference Standard

UL, CSA

Fabrika Tedarik Süresi

3 Weeks

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Number Of Pcb Rows

2

Montaj

Surface Mount

Contact Materials

Bronze

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Pitch

0.031 0.80mm

Stack Height Mating

5mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Additional Feature

E.L.P., POLARIZED

Height Above Board

0.168 4.27mm

Housing Material

Polymer

Insulation Resistance

5000000000Ohm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Iec Conformance

NO

Total Number Of Contacts

80

Contact Finish

Gold

Polarization Key

POLARIZED HOUSING

Depth

5.97mm

Housing Color

Black

Yayın Yılı

2009

Max Voltage Rating Ac

225V

Connector Type

Header, Outer Shroud Contacts

Plating Thickness

FLASH inch

Kurşunsuz Kodu

yes

Parça Durumu

Active

Contact Resistance

15mOhm

Dielectric Withstanding Voltage

675VAC V

Contact Gender

MALE

Ambalaj

Tray

Contact Pattern

RECTANGULAR

Min. Çalışma Sıcaklığı

-55°C

Orientation

Straight

Seri

Q Strip® QTE

Contact Finish Thickness

3.00μin 0.076μm
