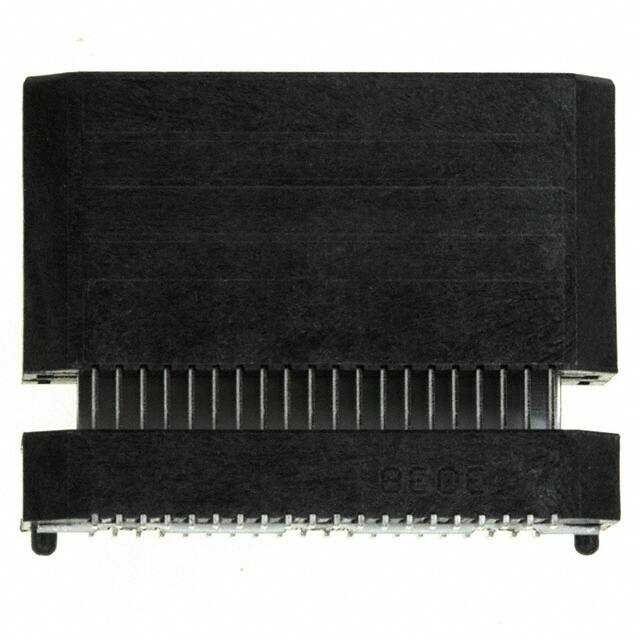

QTE-020-04-L-D-A

Specifications

Contact Style

CENTRONIC

Pozisyon Sayısı

40

Contact Resistance

18mOhm

Uzunluk

20mm

Filter Feature

NO

Montaj

Surface Mount

Yayın Yılı

2003

Contact Materials

Gold, Nickel

Pcb Contact Pattern

RECTANGULAR

Durability

100 Cycles

Polarization Key

POLARIZED HOUSING

Plating Thickness

10μin

Mixed Contacts

NO

Number Of Pcb Rows

2

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Contact Finish

Gold

Lead Pitch

800μm

Reliability

COMMERCIAL

Pitch

0.031 0.80mm

Rated Current Signal

2A

Height Above Board

0.600 15.24mm

Depth

6.73mm

Radyasyon Dayanımı

No

Min. Çalışma Sıcaklığı

-55°C

Additional Feature

E.L.P., POLARIZED

Akım Değeri

2A

Yükseklik

15.345mm

Insulation Resistance

5000000000Ohm

Ambalaj

Tray

Reach Svhc

No SVHC

Mil Conformance

NO

Terminal

Solder

Housing Material

Polymer

Max Voltage Rating Ac

225V

Kurşunsuz Kodu

yes

RoHS Durumu

ROHS3 Compliant

Özellikler

Board Guide, Ground Bus (Plane)

Voltage Rated Ac

225V

Sıra Sayısı

2
