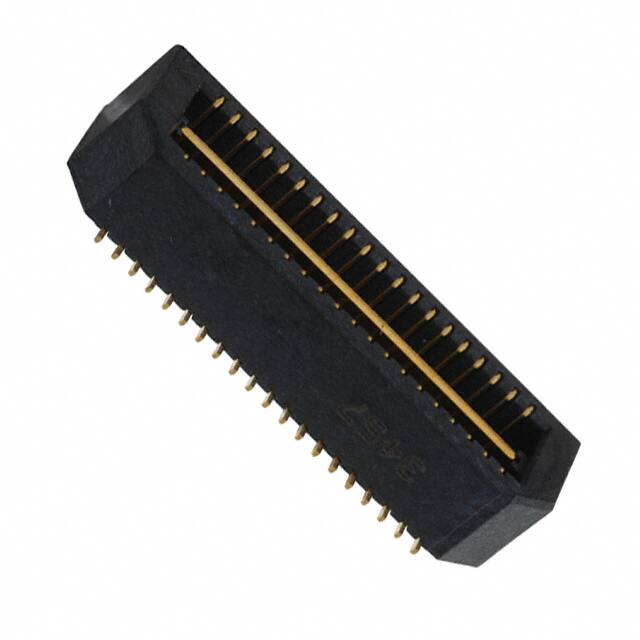

QTE-020-01-L-D-A

Specifications

Housing Material

Polymer

Max Voltage Rating Ac

225V

Voltage Rated Ac

225V

Kurşunsuz Kodu

yes

RoHS Durumu

ROHS3 Compliant

Özellikler

Board Guide, Ground Bus (Plane)

Orientation

Straight

Sıra Sayısı

2

Dielectric Withstanding Voltage

675VAC V

Row Spacing

3.94 mm

Housing Color

Black

Bodyshell Style

PLUG

Maks. Çalışma Sıcaklığı

125°C

Iec Conformance

NO

Seri

Q Strip® QTE

Fabrika Tedarik Süresi

3 Weeks

Stack Height Mating

5mm

Total Number Of Contacts

40

Gender

Male

Din Conformance

NO

Kurşunsuz

Lead Free

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Header, Outer Shroud Contacts

Parça Durumu

Active

Montaj Tipi

Surface Mount

Contact Pattern

RECTANGULAR

Contact Finish Thickness

10.0μin 0.25μm

Number Of Conductors

ONE

JESD-609 Kodu

e3

Nominal Gerilim

225V

Contact Style

CENTRONIC

Uzunluk

20mm

Pozisyon Sayısı

40

Contact Resistance

15mOhm

Filter Feature

NO

Montaj

Surface Mount

Yayın Yılı

2003

Contact Materials

Bronze

Polarization Key

POLARIZED HOUSING

Durability

500 Cycles
