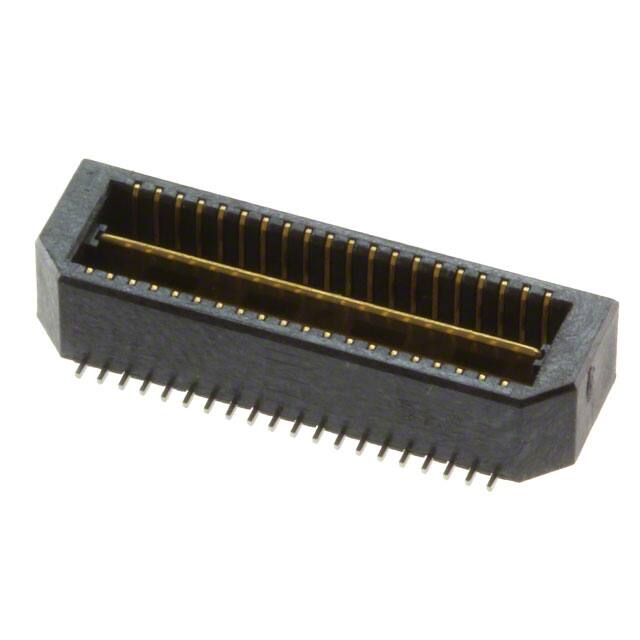

QTE-020-01-F-D-A

Specifications

Maks. Çalışma Sıcaklığı

125°C

Seri

Q Strip® QTE

Iec Conformance

NO

Stack Height Mating

5mm

Fabrika Tedarik Süresi

3 Weeks

Total Number Of Contacts

40

Gender

Male

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Header, Outer Shroud Contacts

Parça Durumu

Active

Montaj Tipi

Surface Mount

Contact Finish Thickness

3.00μin 0.076μm

Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Nominal Gerilim

225V

JESD-609 Kodu

e4

Housing Material

Polymer

Max Voltage Rating Ac

225V

Kurşunsuz Kodu

yes

RoHS Durumu

ROHS3 Compliant

Özellikler

Board Guide, Ground Bus (Plane)

Orientation

Straight

Sıra Sayısı

2

Dielectric Withstanding Voltage

675VAC V

Housing Color

Black

Bodyshell Style

PLUG

Number Of Pcb Rows

2

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Reliability

COMMERCIAL

Pitch

0.031 0.80mm

Rated Current Signal

2A

Height Above Board

0.168 4.27mm

Depth

5.97mm

Radyasyon Dayanımı

No

Min. Çalışma Sıcaklığı

-55°C

Additional Feature

E.L.P., POLARIZED

Akım Değeri

2A

Yükseklik

4.318mm
