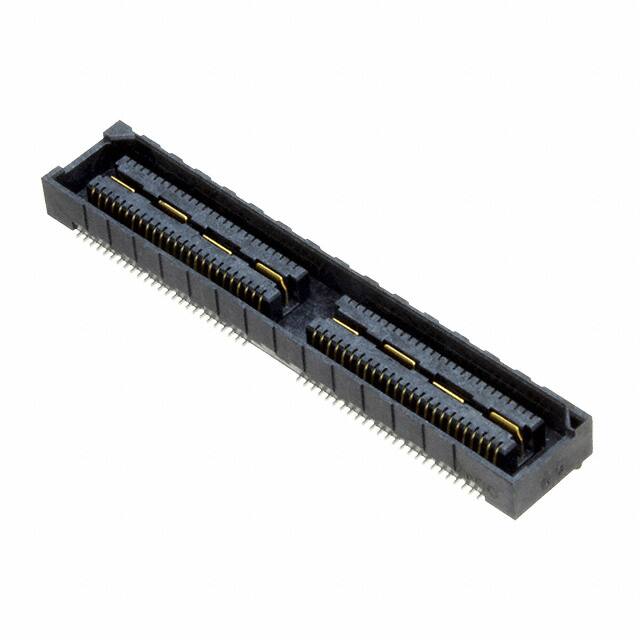

QSS-050-01-F-D-A

Specifications

Sıra Sayısı

2

Orientation

Straight

Max Current Rating

1.1A

Housing Material

Polymer

Max Voltage Rating Ac

285V

Özellikler

Board Guide, Ground Bus (Plane)

RoHS Durumu

ROHS3 Compliant

Kurşunsuz Kodu

yes

Insulator Color

BLACK

Gender

Receptacle

Din Conformance

NO

Maks. Çalışma Sıcaklığı

125°C

Seri

Q Strip® QSS

Iec Conformance

NO

Fabrika Tedarik Süresi

3 Weeks

Total Number Of Contacts

100

Contact Finish Thickness

3.00μin 0.076μm

Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

JESD-609 Kodu

e3

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Socket, Center Strip Contacts

Parça Durumu

Active

Montaj Tipi

Surface Mount

Filter Feature

NO

Montaj

Surface Mount

Yayın Yılı

2010

Contact Style

CENTRONIC

Contact Resistance

15mOhm

Pozisyon Sayısı

100

Uzunluk

41.27mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Bronze

Polarization Key

POLARIZED HOUSING

Plating Thickness

3μin

Mixed Contacts

NO

Contact Finish

Gold

Pitch

0.025 0.64mm

Rated Current Signal

1.3A

Height Above Board

0.143 3.63mm
