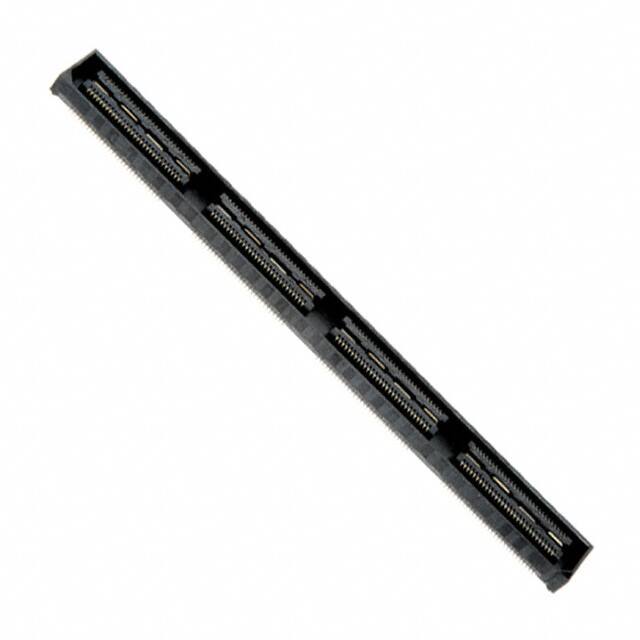

QSH-120-01-L-D-A-K

Specifications

Pitch

0.020 0.50mm

Durability

800 Cycles

Din Conformance

NO

Iec Conformance

NO

Number Of Pcb Rows

2

Rated Current Signal

1A

Orientation

Straight

Depth

7.49mm

Max Voltage Rating Ac

125V

Reference Standard

UL, CSA

Seri

Q Strip® QSH

Pcb Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Uzunluk

81.27mm

Housing Color

Black

Contact Materials

Bronze

Bodyshell Style

PLUG

Total Number Of Contacts

240

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

375VAC V

Connector Type

Receptacle, Center Strip Contacts

Özellikler

Board Guide, Ground Bus (Plane), Pick and Place

Filter Feature

NO

Parça Durumu

Active

Plating Thickness

10μin

Maks. Çalışma Sıcaklığı

125°C

Montaj Tipi

Surface Mount

Ambalaj

Tray

Insulation Resistance

5000000000Ohm

Additional Feature

ROHS COMPLIANT, FILM PLACE PAD

Contact Pattern

RECTANGULAR

Radyasyon Dayanımı

No

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Style

BELLOWED TYPE

Min. Çalışma Sıcaklığı

-55°C

Contact Finish Thickness

10.0μin 0.25μm

Mil Conformance

NO

Board Mounting Option

LOCATING POSTS

Gender

Female

Number Of Conductors

ONE
