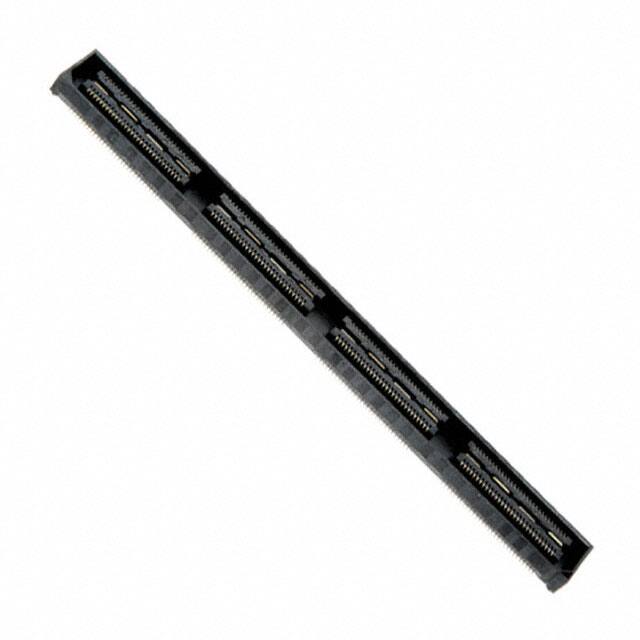

QSH-120-01-C-D-A

Specifications

Iec Conformance

NO

Din Conformance

NO

Pitch

0.020 0.50mm

Seri

Q Strip® QSH

Orientation

Straight

Depth

7.24mm

Max Voltage Rating Ac

125V

Number Of Pcb Rows

2

Rated Current Signal

1A

Total Number Of Contacts

240

Reliability

COMMERCIAL

Bodyshell Style

SOCKET

Pcb Contact Pattern

RECTANGULAR

Uzunluk

81.27mm

Contact Materials

Bronze

Parça Durumu

Active

Maks. Çalışma Sıcaklığı

125°C

Plating Thickness

50μin

Özellikler

Board Guide, Ground Bus (Plane)

Filter Feature

NO

Connector Type

Receptacle, Center Strip Contacts

Contact Style

CENTRONIC

Min. Çalışma Sıcaklığı

-55°C

Contact Finish Thickness

50.0μin 1.27μm

Mil Conformance

NO

Contact Pattern

RECTANGULAR

Radyasyon Dayanımı

No

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Additional Feature

ELP

Montaj Tipi

Surface Mount

Ambalaj

Tray

Option

GENERAL PURPOSE

Gender

Female

Number Of Conductors

ONE

Board Mounting Option

PEG

Pozisyon Sayısı

240

Fabrika Tedarik Süresi

3 Weeks

Mixed Contacts

NO

RoHS Durumu

ROHS3 Compliant

Mating Contact Row Spacing

0.15 inch
