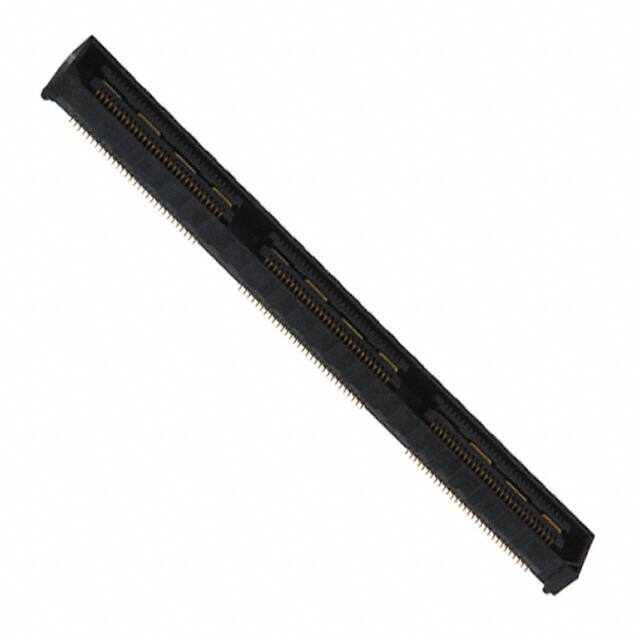

QSH-090-01-C-D-A

Specifications

Total Number Of Contacts

180

Reliability

COMMERCIAL

Bodyshell Style

SOCKET

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

PHOSPHOR BRONZE

Pcb Contact Pattern

RECTANGULAR

Plating Thickness

50μin

Parça Durumu

Active

Özellikler

Board Guide, Ground Bus (Plane)

Voltage Rated Ac

125V

Filter Feature

NO

Operating Temperature Min

-55°C

Connector Type

Receptacle, Center Strip Contacts

Iec Conformance

NO

Din Conformance

NO

Pitch

0.020 0.50mm

Seri

Q Strip® QSH

Rated Current Signal

1A

Number Of Pcb Rows

2

Fabrika Tedarik Süresi

3 Weeks

Pozisyon Sayısı

180

Mixed Contacts

NO

Mating Contact Row Spacing

0.15 inch

ECCN Kodu

EAR99

RoHS Durumu

ROHS3 Compliant

Stack Height Mating

5mm 8mm 11mm 14mm 16mm 19mm 25mm

Yayın Yılı

2008

Pcb Contact Row Spacing

5.7404 mm

Sıra Sayısı

2

Kurşunsuz Kodu

yes

Terminal

Solder

Height Above Board

0.128 3.25mm

Contact Finish

Gold

JESD-609 Kodu

e3

Contact Finish Thickness

50.0μin 1.27μm

Mil Conformance

NO

Contact Style

CENTRONIC

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern

RECTANGULAR

Radyasyon Dayanımı

No
