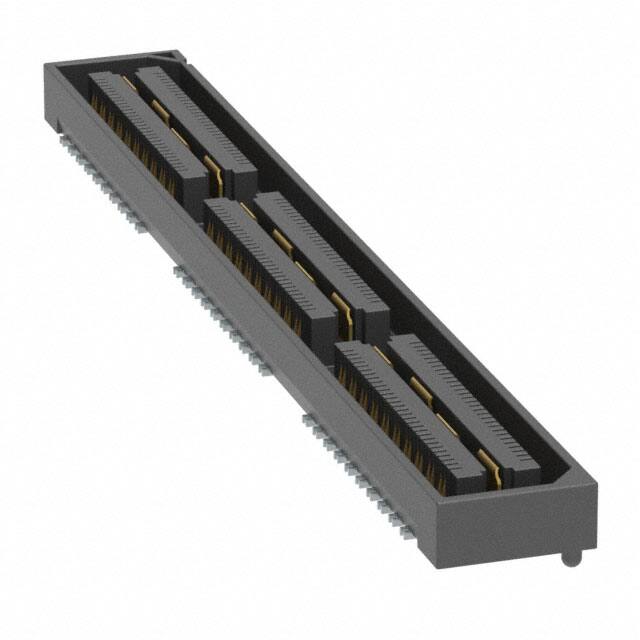

QSH-060-01-L-D-DP-A-K-TR

Specifications

Parça Durumu

Active

Sıra Sayısı

2

Pcb Contact Row Spacing

5.7404 mm

Terminal

Solder

Filter Feature

NO

Voltage Rated Ac

125V

Özellikler

Board Guide, Ground Bus (Plane), Pick and Place

Height Above Board

0.128 3.25mm

Operating Temperature Min

-55°C

Contact Finish

Gold

Connector Type

Differential Pair Array, Female

Mixed Contacts

NO

Reliability

COMMERCIAL

Pozisyon Sayısı

120

Fabrika Tedarik Süresi

3 Weeks

Total Number Of Contacts

120

RoHS Durumu

ROHS3 Compliant

ECCN Kodu

EAR99

Ul Flammability Code

94V-0

Mating Contact Row Spacing

0.15 inch

Bodyshell Style

SOCKET

Stack Height Mating

5mm 8mm 11mm 14mm 16mm 19mm 25mm

Pcb Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2008

HTS Kodu

8536.69.40.40

Option

GENERAL PURPOSE

Gender

Female

Number Of Conductors

ONE

Seri

Q Strip® QSH

Board Mounting Option

PEG

Number Of Pcb Rows

2

Rated Current Signal

1A

Contact Style

CENTRONIC

Iec Conformance

NO

Mil Conformance

NO

Contact Finish Thickness

10.0μin 0.25μm

Radyasyon Dayanımı

No

Din Conformance

NO

Contact Pattern

RECTANGULAR
