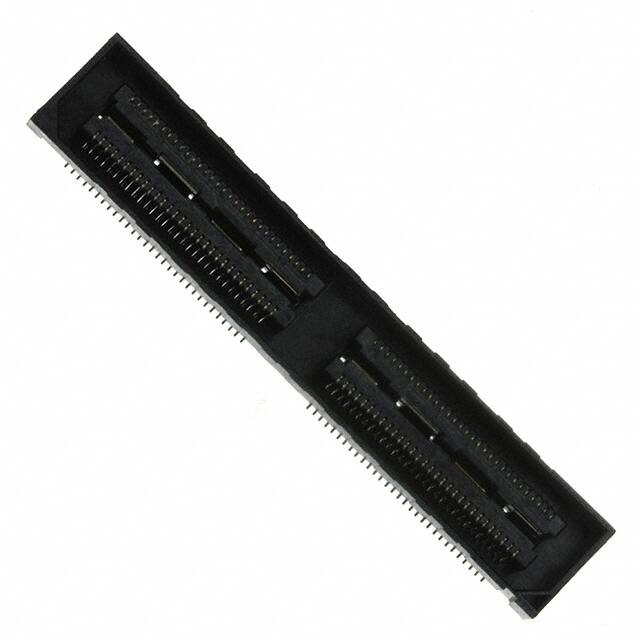

QSH-060-01-L-D-A

Specifications

Iec Conformance

NO

Din Conformance

NO

Durability

100 Cycles

Nominal Gerilim

175V

Pitch

0.020 0.50mm

Akım Değeri

1A

Row Spacing

3.81 mm

Seri

Q Strip® QSH

Max Voltage Rating Ac

125V

Reference Standard

UL, CSA

Orientation

Straight

Depth

7.49mm

Rated Current Signal

1A

Number Of Pcb Rows

2

Dielectric Withstanding Voltage

375VAC V

Total Number Of Contacts

120

Reliability

COMMERCIAL

Bodyshell Style

SOCKET

Nem Hassasiyeti (MSL)

1 (Unlimited)

Uzunluk

41.27mm

Housing Color

Black

Contact Materials

Gold, Nickel

Pcb Contact Pattern

RECTANGULAR

Maks. Çalışma Sıcaklığı

125°C

Plating Thickness

10μin

Parça Durumu

Active

Özellikler

Board Guide, Ground Bus (Plane)

Filter Feature

NO

Voltage Rated Ac

125V

Reach Svhc

No SVHC

Connector Type

Receptacle, Center Strip Contacts

Contact Finish Thickness

10.0μin 0.25μm

Mil Conformance

NO

Contact Style

BELLOWED TYPE

Min. Çalışma Sıcaklığı

-55°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern

RECTANGULAR

Radyasyon Dayanımı

No

Additional Feature

ELP

Insulation Resistance

5000000000Ohm
