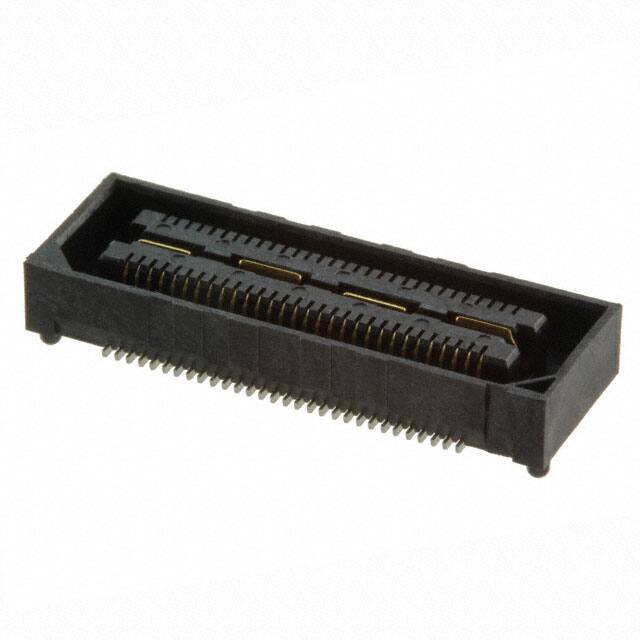

QSH-030-01-L-D-K-TR

Specifications

Filter Feature

NO

Özellikler

Ground Bus (Plane), Pick and Place

Plating Thickness

10μin

Maks. Çalışma Sıcaklığı

125°C

Parça Durumu

Active

Connector Type

Receptacle, Center Strip Contacts

Dielectric Withstanding Voltage

375VAC V

Reliability

COMMERCIAL

Total Number Of Contacts

60

Contact Materials

Bronze

Uzunluk

21.27mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Contact Pattern

RECTANGULAR

Bodyshell Style

SOCKET

Seri

Q Strip® QSH

Rated Current Signal

1A

Number Of Pcb Rows

2

Reference Standard

UL, CSA

Max Voltage Rating Ac

125V

Depth

7.24mm

Orientation

Straight

Din Conformance

NO

Iec Conformance

NO

Pitch

0.020 0.50mm

Durability

100 Cycles

Terminal

Solder

Kurşunsuz Kodu

yes

Sıra Sayısı

2

Pcb Contact Row Spacing

5.7404 mm

Contact Finish

Gold

JESD-609 Kodu

e3

Height Above Board

0.128 3.25mm

RoHS Durumu

ROHS3 Compliant

ECCN Kodu

EAR99

Mixed Contacts

NO

Pozisyon Sayısı

60

Fabrika Tedarik Süresi

3 Weeks

Yayın Yılı

2007

Polarization Key

POLARIZED HOUSING

Stack Height Mating

5mm 8mm 11mm 14mm 16mm 19mm 25mm
