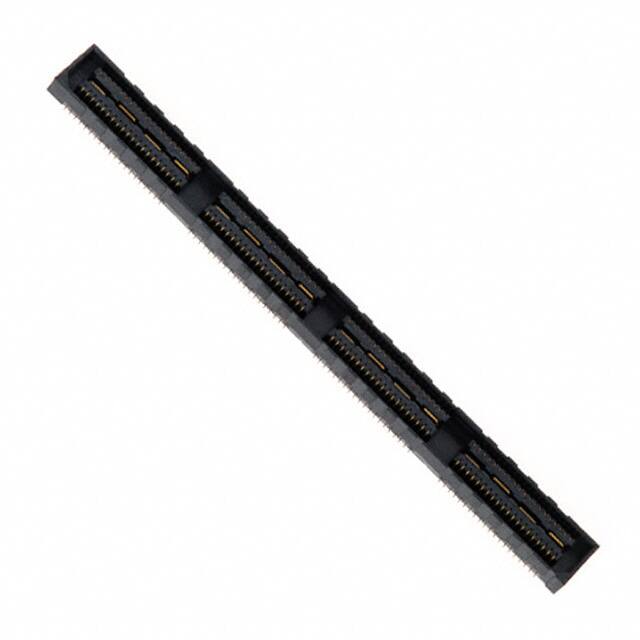

QSE-080-01-L-D-A

Specifications

Özellikler

Board Guide, Ground Bus (Plane)

Mil Conformance

NO

Kurşunsuz Kodu

yes

Durability

100 Cycles

Radyasyon Dayanımı

No

Rated Current Signal

1.3A

Max Voltage Rating Ac

225V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern

RECTANGULAR

Connector Type

Receptacle, Center Strip Contacts

Contact Finish Thickness

10.0μin 0.25μm

Montaj

Surface Mount

Housing Color

Black

Pitch

0.031 0.80mm

Reliability

COMMERCIAL

Din Conformance

NO

Nominal Gerilim

225V

Min. Çalışma Sıcaklığı

-55°C

Stack Height Mating

5mm 8mm 11mm 14mm 16mm 19mm 25mm

Contact Finish

Gold

Fabrika Tedarik Süresi

3 Weeks

Plating Thickness

10μin

Mixed Contacts

NO

Total Number Of Contacts

160

Orientation

Straight

Parça Durumu

Active

Seri

Q Strip® QSE

Contact Materials

Bronze

Row Spacing

3.7 mm

Pozisyon Sayısı

160

Maks. Çalışma Sıcaklığı

125°C

Additional Feature

E.L.P.

Depth

7.24mm

Terminal

Solder

Ambalaj

Tray

Max Current Rating

2A

Gender

Receptacle

RoHS Durumu

ROHS3 Compliant

Lead Pitch

800μm

Akım Değeri

2A
