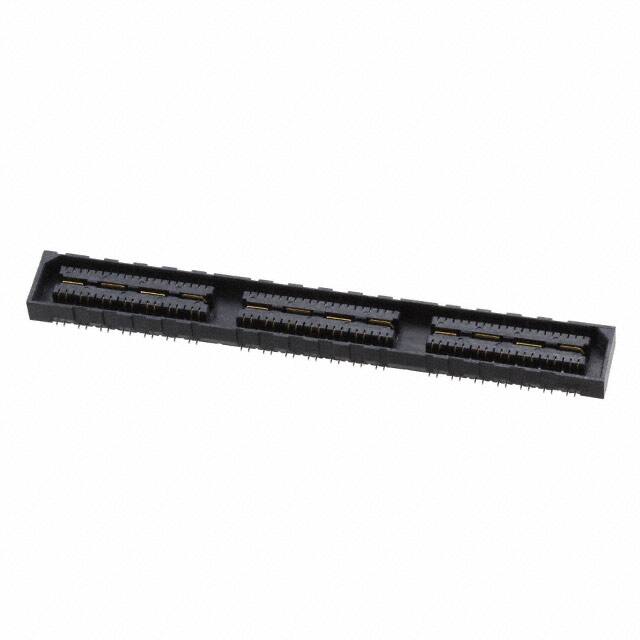

QSE-042-01-L-D-DP-A

Specifications

Insulation Resistance

5000000000Ohm

Ambalaj

Tray

Terminal

Solder

Depth

7.24mm

Additional Feature

E.L.P.

RoHS Durumu

ROHS3 Compliant

Gender

Female

Housing Material

Polymer

Option

GENERAL PURPOSE

Reference Standard

UL, CSA

Filter Feature

NO

Bodyshell Style

SOCKET

Yayın Yılı

2016

Polarization Key

POLARIZED HOUSING

Contact Style

BELLOWED TYPE

Uzunluk

61.27mm

Iec Conformance

NO

Number Of Conductors

ONE

Montaj Tipi

Surface Mount

Contact Resistance

15mOhm

Height Above Board

0.128 3.25mm

Sıra Sayısı

2

JESD-609 Kodu

e3

Number Of Pcb Rows

2

Mil Conformance

NO

Özellikler

Board Guide, Ground Bus (Plane)

Radyasyon Dayanımı

No

Dielectric Withstanding Voltage

675VAC V

Rated Current Signal

2A

Max Voltage Rating Ac

225V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Durability

500 Cycles

Kurşunsuz Kodu

yes

Board Mounting Option

LOCATING POSTS

Contact Finish Thickness

10.0μin 0.25μm

Connector Type

Differential Pair Array, Female

Contact Pattern

RECTANGULAR

Din Conformance

NO

Insulator Color

BLACK

Reliability

COMMERCIAL
