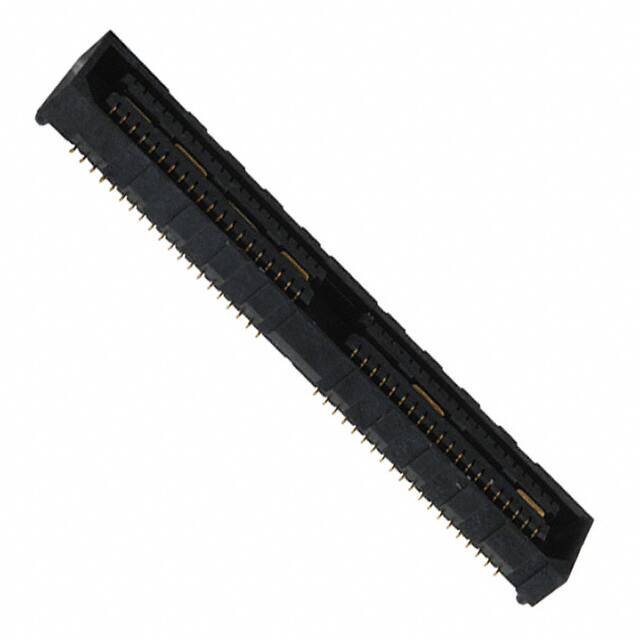

QSE-040-01-L-D-A

Specifications

Contact Materials

Bronze

Row Spacing

3.7 mm

Pozisyon Sayısı

80

Maks. Çalışma Sıcaklığı

125°C

Parça Durumu

Active

Seri

Q Strip® QSE

HTS Kodu

8536.69.40.40

Mixed Contacts

NO

Total Number Of Contacts

80

Orientation

Straight

Nominal Gerilim

225V

Min. Çalışma Sıcaklığı

-55°C

Stack Height Mating

5mm 8mm 11mm 14mm 16mm 19mm 25mm

Plating Thickness

10μin

Contact Finish

Gold

Fabrika Tedarik Süresi

3 Weeks

Reliability

COMMERCIAL

Pitch

0.031 0.80mm

Din Conformance

NO

Connector Type

Receptacle, Center Strip Contacts

Contact Pattern

RECTANGULAR

Montaj

Surface Mount

Contact Finish Thickness

10.0μin 0.25μm

Housing Color

Black

Kurşunsuz Kodu

yes

Durability

100 Cycles

Rated Current Signal

1.3A

Max Voltage Rating Ac

225V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Mil Conformance

NO

Özellikler

Board Guide, Ground Bus (Plane)

Number Of Pcb Rows

2

Sıra Sayısı

2

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Height Above Board

0.128 3.25mm

Kurşunsuz

Lead Free

Montaj Tipi

Surface Mount

Iec Conformance

NO

Number Of Conductors

ONE
