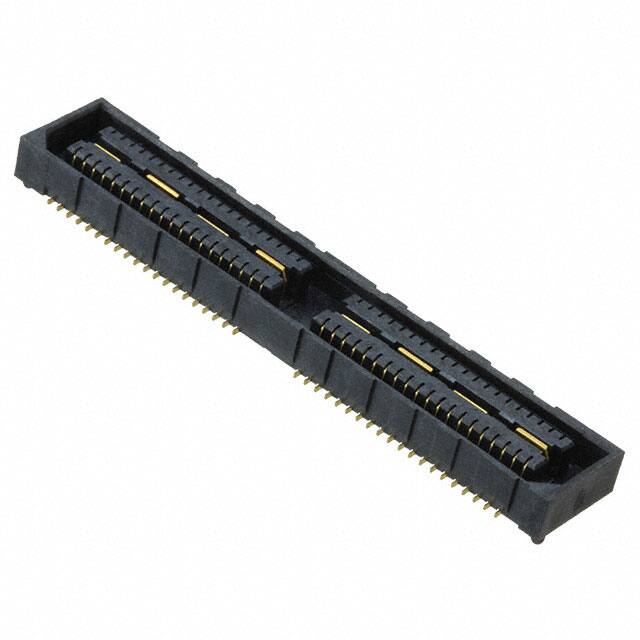

QSE-040-01-H-D-A

Specifications

Yayın Yılı

2011

Polarization Key

POLARIZED HOUSING

Contact Style

BELLOWED TYPE

Filter Feature

NO

Bodyshell Style

SOCKET

Pcb Contact Row Spacing

5.7404 mm

Height Above Board

0.128 3.25mm

Number Of Pcb Rows

2

Sıra Sayısı

2

JESD-609 Kodu

e4

Uzunluk

41.27mm

Montaj Tipi

Surface Mount

Iec Conformance

NO

Number Of Conductors

ONE

Gender

Female

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Insulation Resistance

5000000000Ohm

Ambalaj

Tray

Additional Feature

ROHS COMPLIANT

Depth

7.24mm

Reference Standard

UL, CSA

Pcb Contact Pattern

RECTANGULAR

Housing Material

Polymer

Option

GENERAL PURPOSE

Total Number Of Contacts

80

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Mixed Contacts

NO

Stack Height Mating

5mm 8mm 11mm 14mm 16mm 19mm 25mm

Mounting Option1

LOCKING

Fabrika Tedarik Süresi

3 Weeks

Contact Finish

Gold

Min. Çalışma Sıcaklığı

-55°C

Pozisyon Sayısı

80

Maks. Çalışma Sıcaklığı

125°C

Contact Materials

Bronze

Parça Durumu

Active

Seri

Q Strip® QSE

Radyasyon Dayanımı

No
