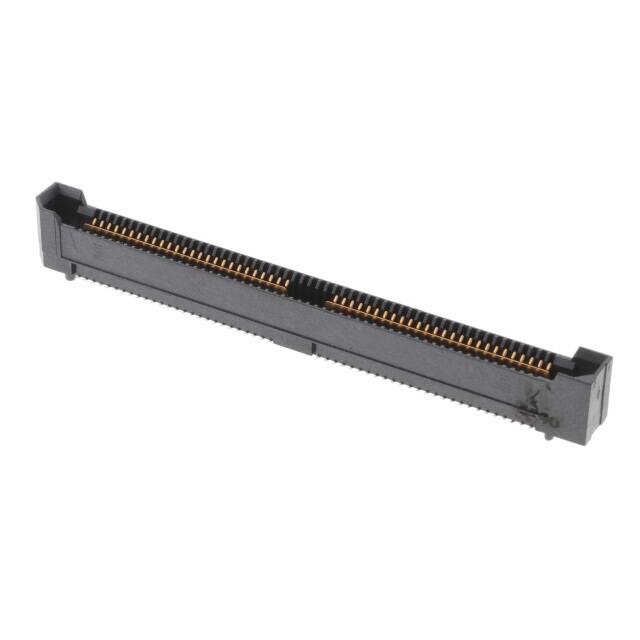

QRF8-052-05.0-L-D-A

Specifications

Ul Flammability Code

94V-0

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Ambalaj

Tray

Seri

QRate® QRF8

Contact Materials

PHOSPHOR BRONZE

Filter Feature

NO

RoHS Durumu

ROHS3 Compliant

Contact Finish

Gold

Gender

Female

Radyasyon Dayanımı

No

Height Above Board

0.197 5.00mm

Connector Type

Array, Female Sockets

Contact Finish Thickness

10.0μin 0.25μm

Pozisyon Sayısı

104

Terminal

Solder

Pitch

0.031 0.80mm

Total Number Of Contacts

104

Özellikler

Board Guide, Ground Bus (Plane)

Stack Height Mating

7mm 10mm 12mm

Additional Feature

EDGE RATE, E.L.P.

Sıra Sayısı

2

Kurşunsuz Kodu

yes

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Montaj Tipi

Surface Mount

JESD-609 Kodu

e3

Parça Durumu

Active

Option

GENERAL PURPOSE

Iec Conformance

NO

Mixed Contacts

NO
