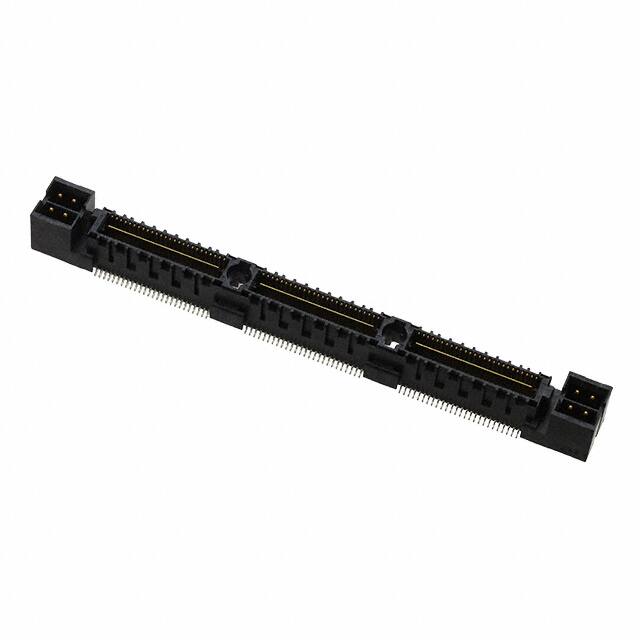

QMS-078-06.75-L-D-PC4

Specifications

Number Of Conductors

ONE

Reach Svhc

No SVHC

Contact Style

SQ PIN-SKT

Montaj Tipi

Surface Mount, Through Hole

Mixed Contacts

YES

Rated Current Signal

1.6A

JESD-609 Kodu

e3

Iec Conformance

NO

Sıra Sayısı

2

Seri

Power Q2™ QMS

Contact Finish

Gold

Kurşunsuz Kodu

yes

Radyasyon Dayanımı

No

Height Above Board

0.265 6.73mm

Özellikler

Board Guide, Ground Bus (Plane), Power Pins (8)

Insulator Color

BLACK

Mating Contact Row Spacing

0.116 inch

Gender

Male

RoHS Durumu

ROHS3 Compliant

Pcb Contact Pattern

RECTANGULAR

Operating Temperature Min

-55°C

Contact Materials

Bronze

Din Conformance

NO

Contact Pattern

RECTANGULAR

Connector Type

Header, Outer Shroud Contacts

Reference Standard

UL, CSA

Parça Durumu

Active

Montaj

Through Hole

Fabrika Tedarik Süresi

3 Weeks

Pozisyon Sayısı

156

Pcb Contact Row Spacing

6.604 mm

Filter Feature

NO

Plating Thickness

10μin

Pitch

0.025 0.64mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Ambalaj

Tray

Number Of Contacts

166

Stack Height Mating

11mm 13mm

Mil Conformance

NO
