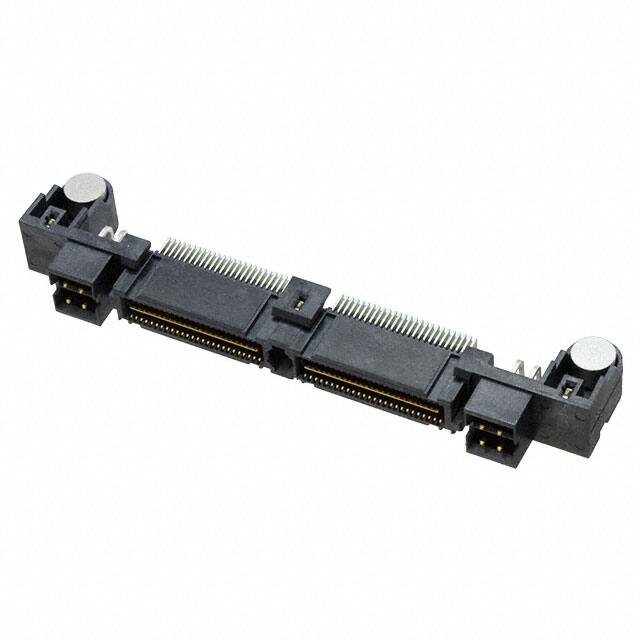

QMS-052-01-SL-D-RA-PC4

Specifications

Mil Conformance

NO

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Housing Color

Black

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Bodyshell Style

PLUG

Contact Finish Thickness

10.0μin 0.25μm

Option

GENERAL PURPOSE

Connector Type

Header, Outer Shroud Contacts

Max Voltage Rating Ac

300V

Contact Materials

Bronze

Din Conformance

NO

Total Number Of Contacts

112

Additional Feature

PANEL MOUNTABLE

Pitch

0.025 0.64mm

Filter Feature

NO

Fabrika Tedarik Süresi

3 Weeks

Housing Material

Polymer

Montaj

Surface Mount, Through Hole

Pozisyon Sayısı

104

Parça Durumu

Active

Orientation

Right Angle

Min. Çalışma Sıcaklığı

-55°C

Contact Finish

Gold

Kurşunsuz Kodu

yes

Yayın Yılı

2010

Seri

Power Q2™ QMS

Gender

Female

RoHS Durumu

ROHS3 Compliant

Maks. Çalışma Sıcaklığı

125°C

Height Above Board

0.320 8.12mm

Özellikler

Board Guide, Ground Bus (Plane), Power Pins (8)

Depth

16.03mm

Sıra Sayısı

2

Iec Conformance

NO

JESD-609 Kodu

e3

Mixed Contacts

YES

Montaj Tipi

Surface Mount, Right Angle; Through Hole

Uzunluk

68.5mm
