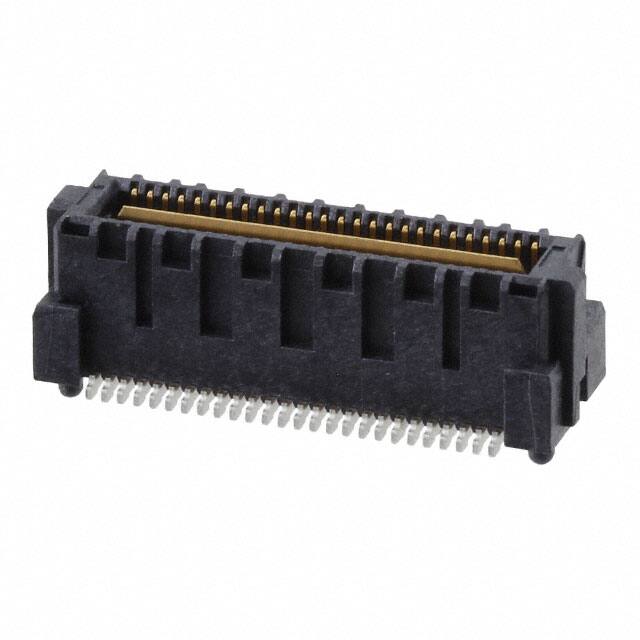

QMS-026-05.75-L-D-A

Specifications

Reference Standard

UL, CSA

Plating Thickness

10μin

Filter Feature

NO

Contact Materials

Bronze

Additional Feature

Q2

Number Of Pcb Rows

2

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Reliability

COMMERCIAL

Akım Değeri

2.35A

HTS Kodu

8536.69.40.40

Mil Conformance

NO

Stack Height Mating

10mm 12mm

Contact Style

SQ PIN-SKT

Mounting Option1

LOCKING

Rated Current Signal

1.6A

JESD-609 Kodu

e3

Iec Conformance

NO

Nominal Gerilim

300V

Özellikler

Board Guide, Ground Bus (Plane)

Mating Contact Row Spacing

0.116 inch

Kurşunsuz Kodu

yes

Seri

Power Q2™ QMS

Pozisyon Sayısı

52

Housing Material

Polymer

Board Mounting Option

PEG

Parça Durumu

Active

Pitch

0.025 0.64mm

Pcb Contact Row Spacing

6.604 mm

Din Conformance

NO

Contact Pattern

RECTANGULAR

Pcb Contact Pattern

RECTANGULAR

Total Number Of Contacts

52

Connector Type

Header, Outer Shroud Contacts

Max Voltage Rating Ac

300V

Bodyshell Style

RECEPTACLE

Option

GENERAL PURPOSE

Contact Finish Thickness

10.0μin 0.25μm

Insulation Resistance

5000000000Ohm

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)
