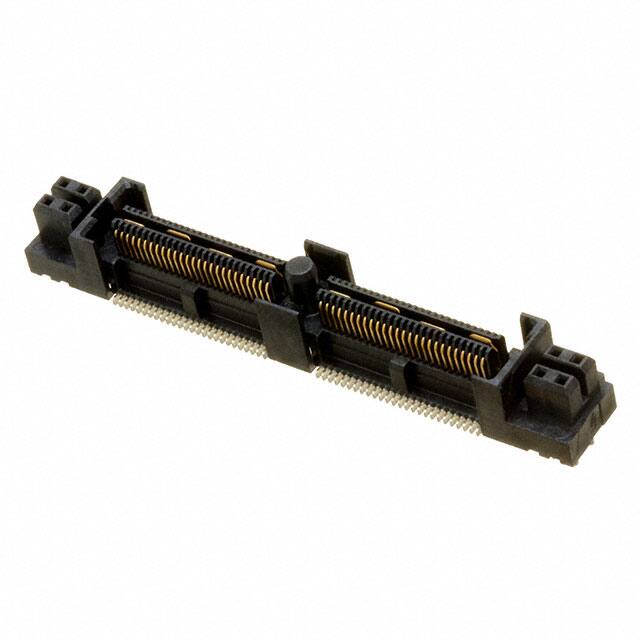

QFS-052-04.25-L-D-A

Specifications

Maks. Çalışma Sıcaklığı

125°C

Rated Current Signal

4.1A

Pozisyon Sayısı

104

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Depth

8.13mm

Montaj

Surface Mount

Mixed Contacts

NO

RoHS Durumu

ROHS3 Compliant

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Lead Pitch

635μm

Housing Color

Black

Contact Pattern

RECTANGULAR

Contact Finish

Gold

Parça Durumu

Active

Radyasyon Dayanımı

No

Uzunluk

43.7mm

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Mil Conformance

NO

Connector Type

Receptacle, Center Strip Contacts

Housing Material

Polymer

Iec Conformance

NO

Pcb Contact Row Spacing

6.477 mm

Contact Materials

Bronze

Reliability

COMMERCIAL

Max Voltage Rating Ac

300V

Orientation

Straight

Total Number Of Contacts

104

Gender

Receptacle

Min. Çalışma Sıcaklığı

-55°C

Plating Thickness

10μin

Number Of Conductors

ONE

Pcb Contact Pattern

RECTANGULAR

Reach Svhc

No SVHC

Number Of Pcb Rows

2

Height Above Board

0.278 7.06mm

Bodyshell Style

SOCKET

Ambalaj

Tray
