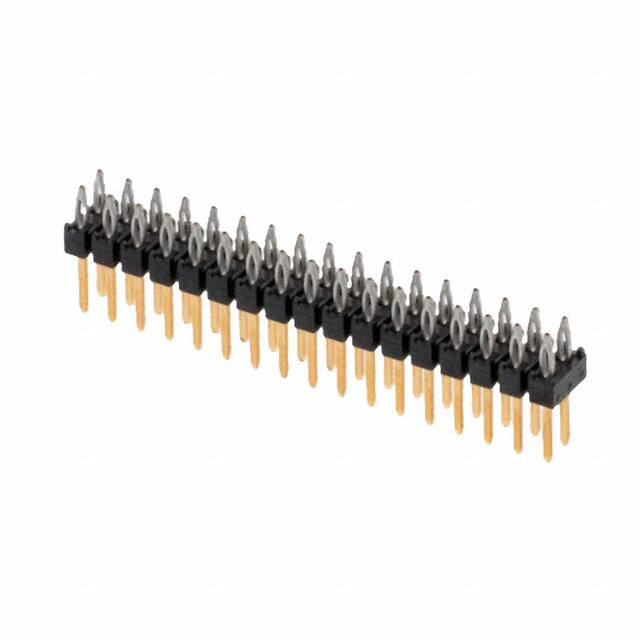

PHT-117-01-L-D

Specifications

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Contact Finish Thickness Mating

10.0μin 0.25μm

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

3 Weeks

Body Length Or Diameter

1.7 inch

Connector Type

Header

Contact Length Post

0.122 3.10mm

Mating Contact Pitch

0.1 inch

Montaj Tipi

Through Hole

Gender

Male

Contact Finish Mating

Gold

Contact Shape

Square

Body Depth

0.1 inch

Number Of Conductors

ONE

Pozisyon Sayısı

34

Filter Feature

NO

Shrouding

Unshrouded

Mixed Contacts

NO

Seri

PHT

Plating Thickness

10μin

Reference Standard

UL

Body Breadth

0.198 inch

Montaj

Through Hole

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Lengthmating

0.230 5.84mm

Number Of Positions Loaded

All

Sıra Sayısı

2

Ul Flammability Code

94V-0

Contact Materials

Phosphor Bronze

Insulation Height

0.100 2.54mm

Kurşunsuz Kodu

yes

Current Rating Amps

4.8A per Contact

Iec Conformance

NO

Row Spacing Mating

0.100 (2.54mm)

Çalışma Sıcaklığı

-55°C~125°C

RoHS Durumu

ROHS3 Compliant

Number Of Pcb Rows

2

Reliability

COMMERCIAL

Ambalaj

Tube
