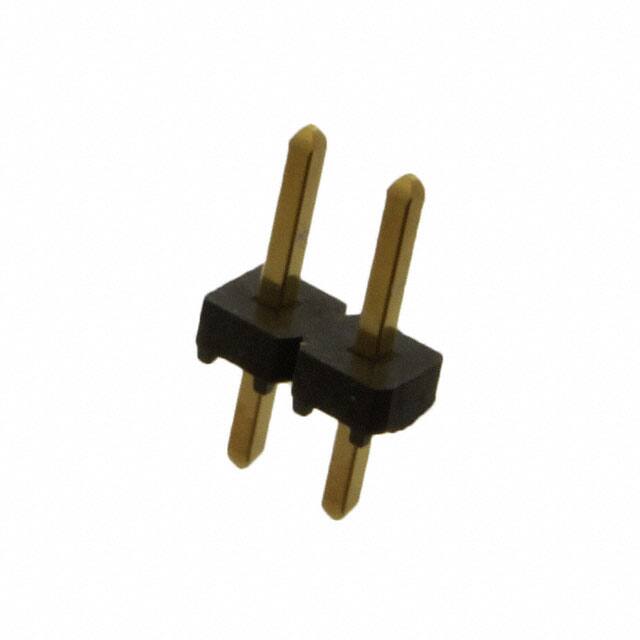

MTLW-102-05-G-S-170

Specifications

Shrouding

Unshrouded

Material Flammability Rating

UL94 V-0

Uzunluk

5.08mm

Orientation

Straight

Contact Finish Thickness Post

3.00μin 0.076μm

Mil Conformance

NO

Contact Finish Thickness Mating

10.0μin 0.25μm

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Lengthmating

0.170 4.32mm

Pozisyon Sayısı

2

JESD-609 Kodu

e4

Mixed Contacts

NO

Ambalaj

Bulk

Contact Type

Male Pin

Fabrika Tedarik Süresi

3 Weeks

Option

GENERAL PURPOSE

Contact Materials

Phosphor Bronze

Max Current Rating

3A

Sıra Sayısı

1

Radyasyon Dayanımı

No

Din Conformance

NO

Filter Feature

NO

Contact Length Post

0.105 2.67mm

Fastening Type

Push-Pull

Pitch Mating

0.100 2.54mm

Housing Material

Polymer

Çalışma Sıcaklığı

-55°C~125°C

Gender

Male

Contact Shape

Square

Seri

Flex Stack, MTLW

Overall Contact Length

0.335 8.51mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Iec Conformance

NO

Contact Finish Mating

Gold

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.060 1.52mm

Depth

2.48mm
