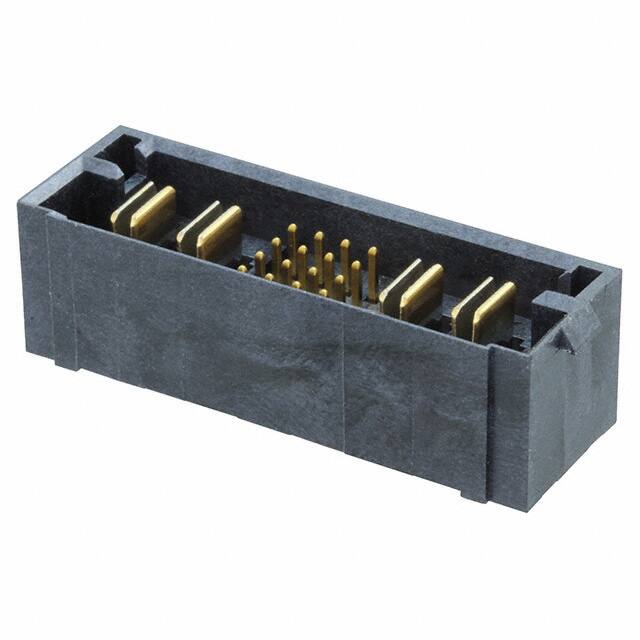

MPTC-02-16-02-6.30-01-L-V-LC

Specifications

Insulation Height

0.448 11.38mm

Filter Feature

NO

Fastening Type

Locking Ramp

Contact Finish Mating

Gold

Din Conformance

NO

Terminal Sayısı

40

Montaj

Through Hole

Max Voltage Rating Ac

300V

Contact Length Post

0.107 2.71mm

Row Spacing Mating

0.079 (2.00mm)

Parça Durumu

Active

Contact Finish Post

Tin

Montaj Tipi

Through Hole

Orientation

Straight

ECCN Kodu

EAR99

Contact Finish Thickness Mating

10.0μin 0.25μm

Iec Conformance

NO

Contact Type

Male Blade; Male Pin

Style

Board to Board

Stack Height Mating

14mm

Contact Materials

Copper Alloy, Phosphor Bronze

Mixed Contacts

YES

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polymer

Insulation Color

Black

Sıra Sayısı

4

Gender

Male

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Number Of Conductors

ONE

Reference Standard

UL

Number Of Ports

1

Additional Feature

POWER STRIP

Option

GENERAL PURPOSE

Connector Type

Header

Empty Shell

NO

Depth

12.45mm

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No
