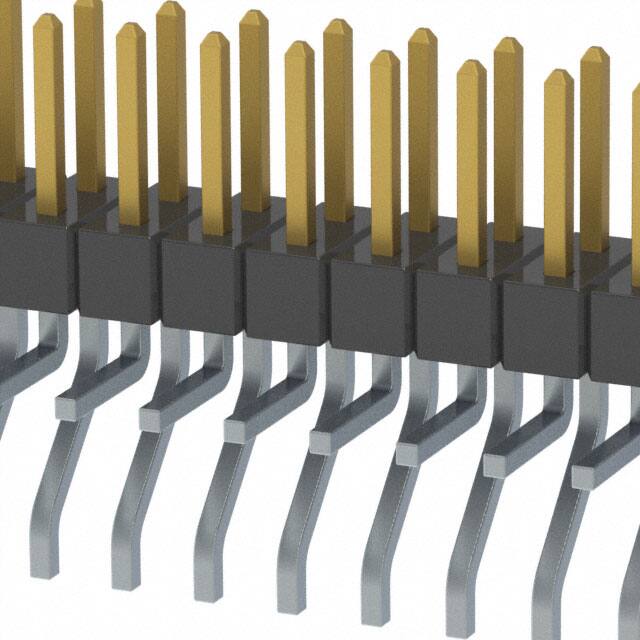

MMT-130-02-L-MT

Specifications

Montaj Tipi

Surface Mount, Right Angle; Through Hole

Insulation Color

Black

Kurşunsuz Kodu

yes

Din Conformance

NO

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.079 2.00mm

Option

GENERAL PURPOSE

Çalışma Sıcaklığı

-55°C~125°C

Contact Shape

Square

Insulation Height

0.157 4.00mm

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Filter Feature

NO

Contact Finish Mating

Gold

Contact Finish Thickness Mating

10.0μin 0.25μm

Pcb Contact Pattern

RECTANGULAR

Number Of Pcb Rows

2

Ambalaj

Bulk

Reference Standard

UL

Reach Svhc

No SVHC

Connector Type

Header

Insulation Materials

Liquid Crystal Polymer (LCP)

Length Termination

0.1 inch

Contact Finish Post

Tin

RoHS Durumu

ROHS3 Compliant

Montaj

Surface Mount

Mil Conformance

NO

Yayın Yılı

2013

Number Of Conductors

ONE

Sıra Sayısı

2

Contact Lengthmating

0.175 4.45mm

Terminal

Solder

Total Number Of Contacts

60

Row Spacing Mating

0.079 (2.00mm)

Fastening Type

Push-Pull

Mixed Contacts

NO

Iec Conformance

NO

Material Flammability Rating

UL94 V-0

Parça Durumu

Active
