Volume pricing
- 1+ pcs$5.22
- 10+ pcs$4.93
- 100+ pcs$4.65
- 500+ pcs$4.38
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

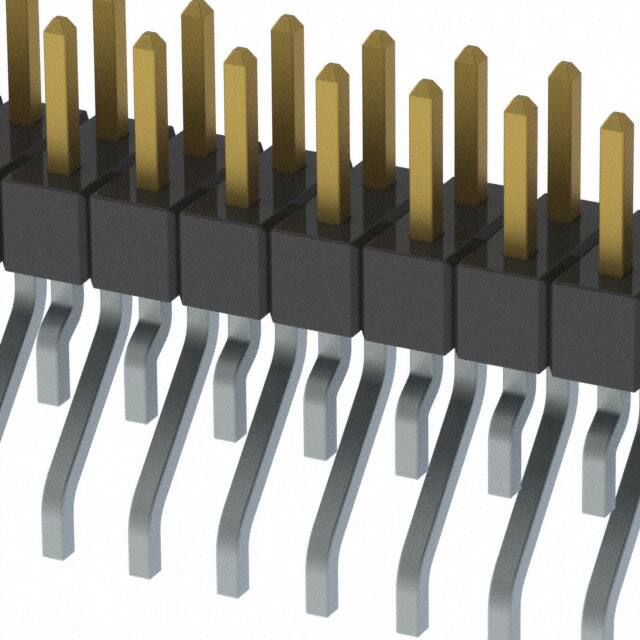

Specifications
- Number Of Conductors
- ONE
- Sıra Sayısı
- 2
- Row Spacing Mating
- 0.079 (2.00mm)
- Total Number Of Contacts
- 32
- Fastening Type
- Push-Pull
- Terminal
- Solder
- Contact Lengthmating
- 0.126 3.20mm
- Yayın Yılı
- 2013
- Mil Conformance
- NO
- Material Flammability Rating
- UL94 V-0
- Parça Durumu
- Active
- Mixed Contacts
- NO
- Iec Conformance
- NO
- Plating Thickness
- 10μin
- Contact Materials
- Phosphor Bronze
- Current Rating Amps
- 3A
- Shrouding
- Unshrouded
- Seri
- MMT
- Ul Flammability Code
- 94V-0
- Fabrika Tedarik Süresi
- 3 Weeks
- Style
- Board to Board or Cable
- Body Breadth
- 0.157 inch
- Contact Type
- Male Pin
- Pozisyon Sayısı
- 32
- Mating Contact Pitch
- 0.079 inch
- Gender
- Male
- Kurşunsuz Kodu
- yes
- Din Conformance
- NO
- Reliability
- COMMERCIAL
- Montaj Tipi
- Surface Mount, Right Angle
- Insulation Color
- Black
- Insulation Height
- 0.157 4.00mm
- Number Of Positions Loaded
- All
- JESD-609 Kodu
- e3
- Pitch Mating
- 0.079 2.00mm
- Çalışma Sıcaklığı
- -55°C~125°C
- Contact Shape
- Square
- Option
- GENERAL PURPOSE
- Pcb Contact Pattern
- RECTANGULAR
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
