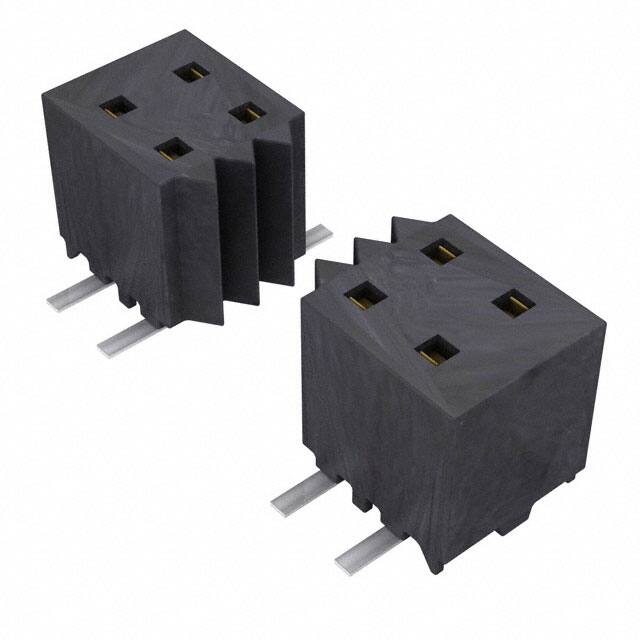

MMS-113-02-L-DV-K

Specifications

Current Rating Amps

3.9A per Contact

Contact Shape

Square

Sıra Sayısı

2

Filter Feature

NO

Çalışma Sıcaklığı

-55°C~125°C

Pozisyon Sayısı

26

Terminal

Solder

Housing Color

Black

Row Spacing Mating

0.079 (2.00mm)

Housing Material

Polymer

Pcb Contact Row Spacing

5.3086 mm

Connector Type

Receptacle

Contact Materials

Phosphor Bronze

Depth

4mm

Option

GENERAL PURPOSE

Reference Standard

UL, CSA

Reliability

COMMERCIAL

Insulation Height

0.177 4.50mm

Kurşunsuz

Lead Free

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Finish Post

Tin

Ambalaj

Tube

Din Conformance

NO

Orientation

Straight

Pcb Contact Pattern

RECTANGULAR

Contact Finish Mating

Gold

Polarization Key

POLARIZED HOUSING

Contact Resistance

10mOhm

Iec Conformance

NO

Style

Board to Board or Cable

Number Of Pcb Rows

2

Özellikler

Pick and Place

Parça Durumu

Active

Mil Conformance

NO

Pitch Mating

0.079 2.00mm

Fastening Type

Push-Pull

Number Of Conductors

ONE

Withdrawl Forcemin

.6116 N

Total Number Of Contacts

26

Number Of Positions Loaded

All
