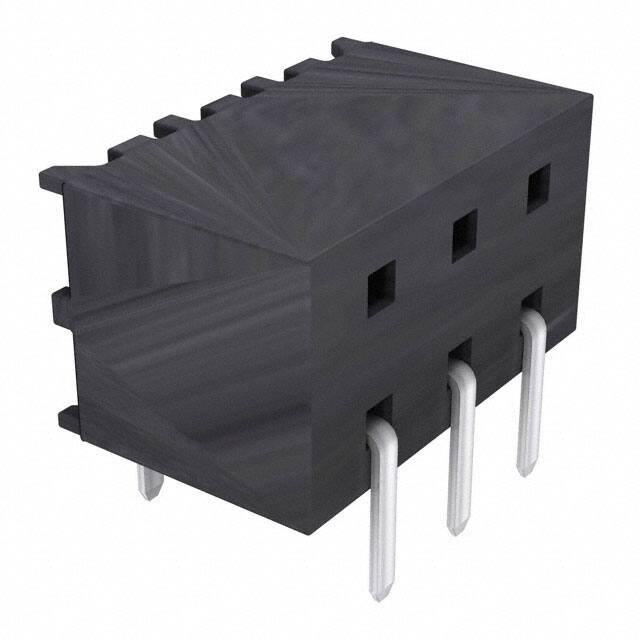

MMS-103-01-L-DH

Specifications

Contact Type

Female Socket

JESD-609 Kodu

e3

Genişlik

4.45mm

Montaj Tipi

Through Hole, Right Angle

Number Of Positions Loaded

All

Body Breadth

0.157 inch

Number Of Conductors

ONE

Fastening Type

Push-Pull

Pitch Mating

0.079 2.00mm

Mil Conformance

NO

Parça Durumu

Discontinued

Number Of Pcb Rows

2

Montaj

Through Hole

Yayın Yılı

2000

RoHS Durumu

ROHS3 Compliant

Plating Thickness

10μin

Contact Finish Thickness Mating

10.0μin 0.25μm

Seri

MMS

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

2 Weeks

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Uzunluk

6.559mm

Mating Contact Pitch

0.079 inch

Reliability

COMMERCIAL

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Additional Feature

MOUNT, HORIZ

Kurşunsuz

Lead Free

Insulation Height

0.157 4.00mm

Sıra Sayısı

2

Filter Feature

NO

Çalışma Sıcaklığı

-55°C~125°C

Lead Pitch

2mm

Current Rating Amps

3.9A per Contact

Contact Shape

Square

Connector Type

Receptacle

Contact Materials

Phosphor Bronze

Depth

4.7mm
