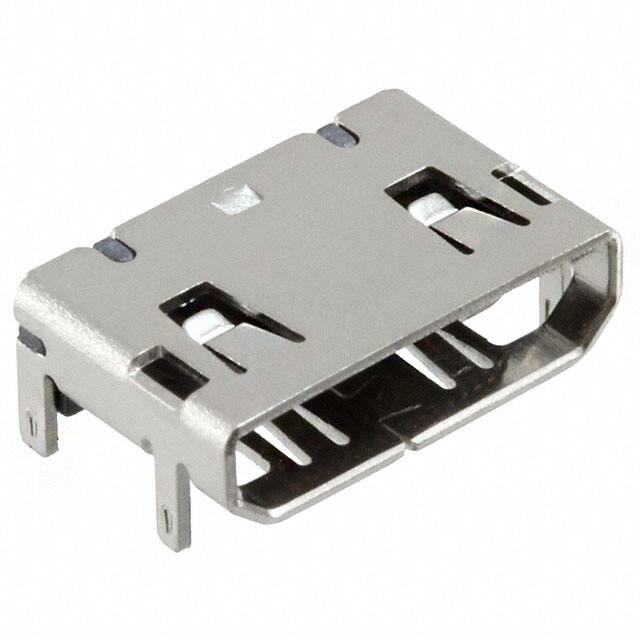

MHDMI-19-02-H-TH-L-TR

Specifications

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Yayın Yılı

2011

Terminal

Solder

Shellshielding Material

Brass

Number Of Contacts

19

Contact Finish

Gold

Empty Shell

NO

Filter Feature

NO

Housing Material

Thermoplastic

Option

GENERAL PURPOSE

Mounting Feature

Horizontal

Insulation Color

Black

Mixed Contacts

NO

Gender

Receptacle

Contact Materials

Bronze

Montaj Tipi

Surface Mount, Right Angle; Through Hole

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Ports

1

Max Voltage Rating Ac

40V

Shielding

Unshielded

Parça Durumu

Obsolete

Nominal Gerilim

40VAC

Din Conformance

NO

Çalışma Sıcaklığı

-25°C~85°C

Uzunluk

11.2mm

Current Rating Amps

0.5A

Mating Cycles

100

Radyasyon Dayanımı

No

Pitch

400μm

Montaj

Horizontal, Surface Mount

Depth

8.17mm

Iec Conformance

NO

Orientation

Right Angle

RoHS Durumu

ROHS3 Compliant

Additional Feature

LATCHED

JESD-609 Kodu

e4

Connector Type

HDMI - Mini

Ambalaj

Tape & Reel (TR)

Shell Finish

NICKEL
