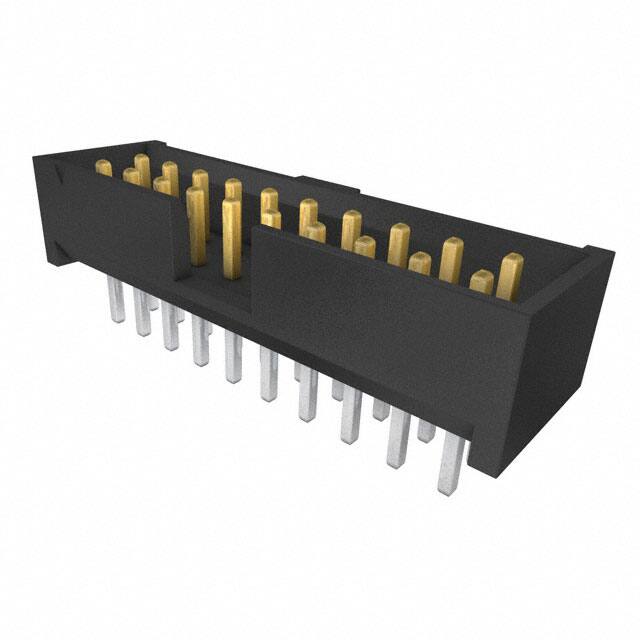

LTMM-110-02-L-D

Specifications

Mating Contact Pitch

0.079 inch

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Black

Ambalaj

Tube

Terminal

Solder

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Length Post

0.118 3.00mm

RoHS Durumu

ROHS3 Compliant

Gender

Male

Contact Lengthmating

0.120 3.05mm

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Mating

Gold

ECCN Kodu

EAR99

Number Of Conductors

ONE

Iec Conformance

NO

Montaj Tipi

Through Hole

Pitch Mating

0.079 2.00mm

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Sıra Sayısı

2

Number Of Pcb Rows

2

Filter Feature

NO

Shrouding

Shrouded - 4 Wall

Contact Finish Thickness Mating

10.0μin 0.25μm

Yayın Yılı

2011

Polarization Key

POLARIZED HOUSING

Insulation Height

0.190 4.83mm

Contact Type

Male Pin

Montaj

Through Hole

Connector Type

Header

Body Depth

0.19 inch

Fastening Type

Push-Pull

Contact Shape

Square

Din Conformance

NO

Reliability

COMMERCIAL

Style

Board to Board

Mil Conformance

NO

Özellikler

Keying Slot

Radyasyon Dayanımı

No
