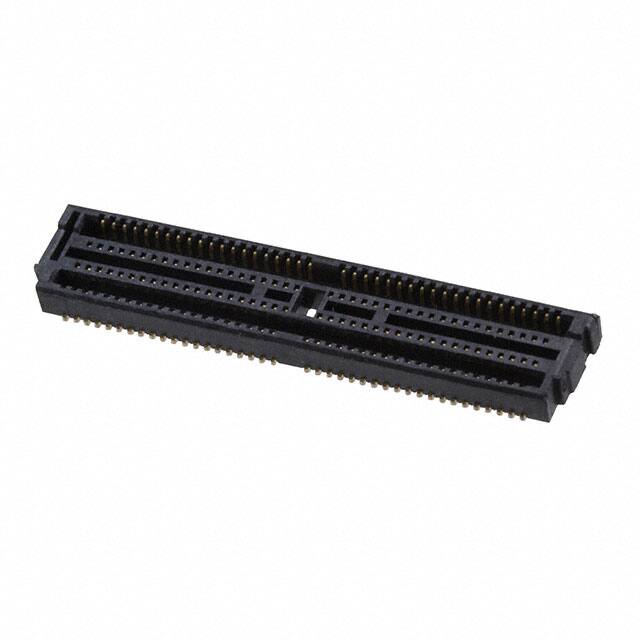

LTH-040-01-G-D-A

Specifications

Din Conformance

NO

Polarization Key

POLARIZED HOUSING

Filter Feature

NO

Montaj Tipi

Surface Mount

Orientation

Straight

Parça Durumu

Active

Board Mounting Option

POSITIONING PIN

Contact Finish Thickness

10.0μin 0.25μm

Iec Conformance

NO

ECCN Kodu

EAR99

Yayın Yılı

2015

Plating Thickness

10μin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Uzunluk

23.79mm

Fabrika Tedarik Süresi

3 Weeks

Housing Material

Polymer

Number Of Pcb Rows

2

Body Breadth

0.189 inch

Sıra Sayısı

2

Stack Height Mating

2.31mm

Contact Materials

Copper

Bodyshell Style

PLUG

Mixed Contacts

NO

Number Of Conductors

ONE

Reference Standard

UL

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pitch

0.020 0.50mm

HTS Kodu

8536.69.40.40

Gender

Male

Max Current Rating

1.5A

Option

GENERAL PURPOSE

Contact Finish

Gold

Connector Type

Header, Outer Shroud Contacts

Depth

4.8mm

Mounting Option1

LOCKING

Total Number Of Contacts

80

Additional Feature

LOW PROFILE

Contact Pattern

RECTANGULAR

Terminal

Solder

RoHS Durumu

ROHS3 Compliant
