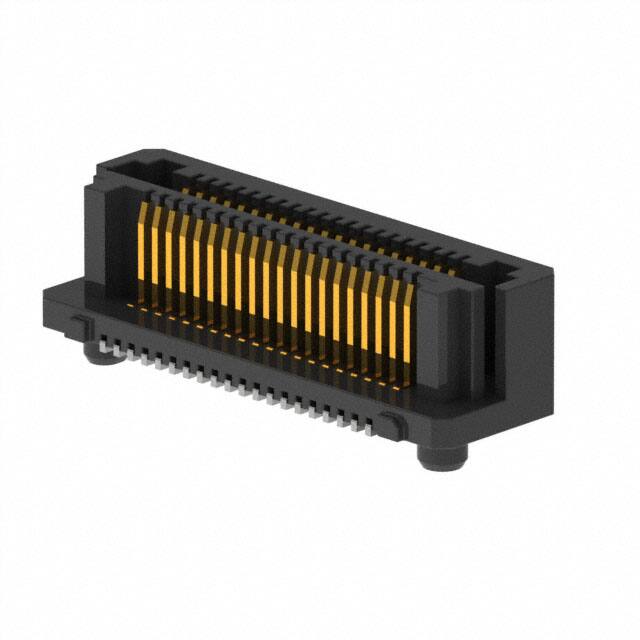

LSHM-120-02.5-F-DV-A-N-K-TR

Specifications

Insulation Resistance

1000000000Ohm

Housing Material

Polymer

Height Above Board

0.156 3.96mm

Additional Feature

RAZOR BEAM SYSTEM

RoHS Durumu

ROHS3 Compliant

Mounting Option1

LOCKING

Stack Height Mating

5mm 5.5mm 6.5mm 8.5mm

Din Conformance

NO

Pitch

0.020 0.50mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

Bronze

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Number Of Pcb Rows

2

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Reference Standard

UL

Fabrika Tedarik Süresi

3 Weeks

Contact Resistance

15mOhm

Dielectric Withstanding Voltage

470VAC V

Connector Type

Self Mating, Non-Gendered

Plating Thickness

FLASH inch

Parça Durumu

Active

Body Breadth

0.196 inch

Depth

4.98mm

Polarization Key

POLARIZED HOUSING

Housing Color

Black

Contact Finish

Gold

Total Number Of Contacts

40

Iec Conformance

NO

Terminal

Solder

Uzunluk

14.7mm

Özellikler

Board Guide, Pick and Place

Contact Finish Thickness

3.00μin 0.076μm

Pozisyon Sayısı

40

JESD-609 Kodu

e3

ECCN Kodu

EAR99

Pcb Contact Row Spacing

3.7084 mm

Seri

Razor Beam™ LSHM

Board Mounting Option

PEG
