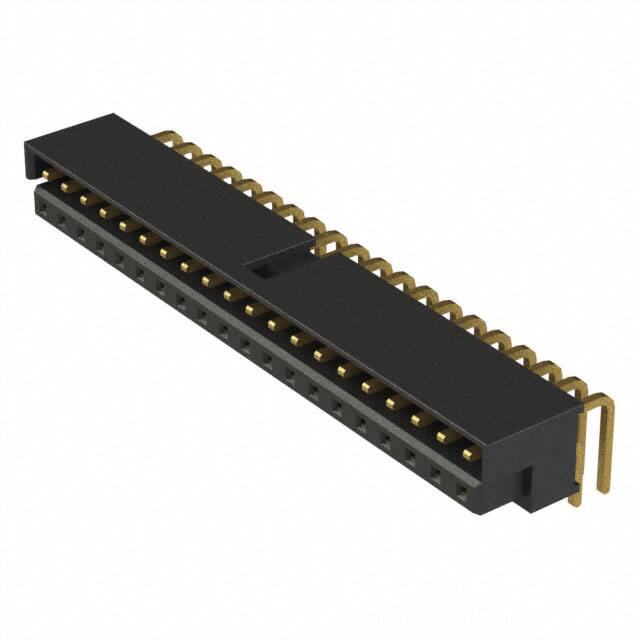

LS2-120-01-L-D-RA2

Specifications

Reference Standard

UL

Filter Feature

NO

Reliability

COMMERCIAL

Contact Pattern

RECTANGULAR

Contact Materials

Bronze

Gender

Receptacle

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE

Body Length Or Diameter

1.636 inch

Sıra Sayısı

2

Iec Conformance

NO

Ambalaj

Tube

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.079 2.00mm

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Mating Contact Row Spacing

0.079 inch

Contact Style

SQ PIN-SKT

Montaj Tipi

Through Hole, Right Angle

Withdrawl Forcemin

.834 N

Mil Conformance

NO

Contact Finish Thickness

10.0μin 0.25μm

Min. Çalışma Sıcaklığı

-55°C

Pcb Contact Pattern

RECTANGULAR

Plating Thickness

10μin

Parça Durumu

Active

Number Of Pcb Rows

2

Insulator Color

BLACK

Option

GENERAL PURPOSE

Orientation

Right Angle

Additional Feature

TIGER BUY CONTACT, MICRO RUGGED, LATCHED, POLARIZED, SHROUDED

Total Number Of Contacts

40

Reach Svhc

No SVHC

Montaj

Through Hole

Polarization Key

ENDS

RoHS Durumu

ROHS3 Compliant

Maks. Çalışma Sıcaklığı

125°C

Özellikler

Latch Holder

Kurşunsuz Kodu

yes

Contact Finish

Gold

Height Above Board

0.208 5.28mm
