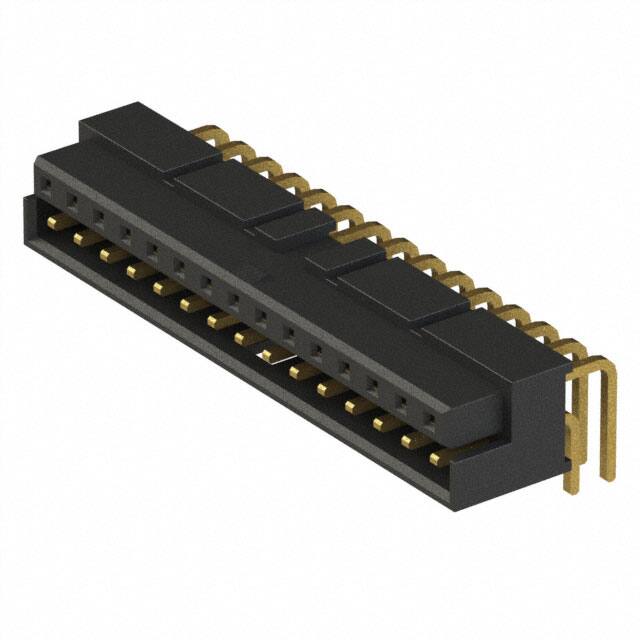

LS2-115-01-L-D-RA1

Specifications

Montaj Tipi

Through Hole, Right Angle

Contact Style

SQ PIN-SKT

Mating Contact Row Spacing

0.079 inch

Housing Material

Polymer

Pitch

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Ambalaj

Tube

Max Voltage Rating Ac

475V

Sıra Sayısı

2

Plating Thickness

10μin

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Mil Conformance

NO

Withdrawl Forcemin

.834 N

Radyasyon Dayanımı

No

Min. Çalışma Sıcaklığı

-55°C

Contact Finish Thickness

10.0μin 0.25μm

Reliability

COMMERCIAL

Reference Standard

UL

Filter Feature

NO

Contact Materials

Bronze

Number Of Conductors

ONE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Gender

Receptacle

Contact Pattern

RECTANGULAR

Depth

10.13mm

Seri

LS2

Yayın Yılı

2013

Bodyshell Style

SOCKET

Terminal

Solder

Connector Type

Self Mating, Non-Gendered

Fabrika Tedarik Süresi

3 Weeks

JESD-609 Kodu

e3

Din Conformance

NO

Pozisyon Sayısı

30

Mixed Contacts

NO

Reach Svhc

No SVHC

Option

GENERAL PURPOSE

Number Of Pcb Rows

2
