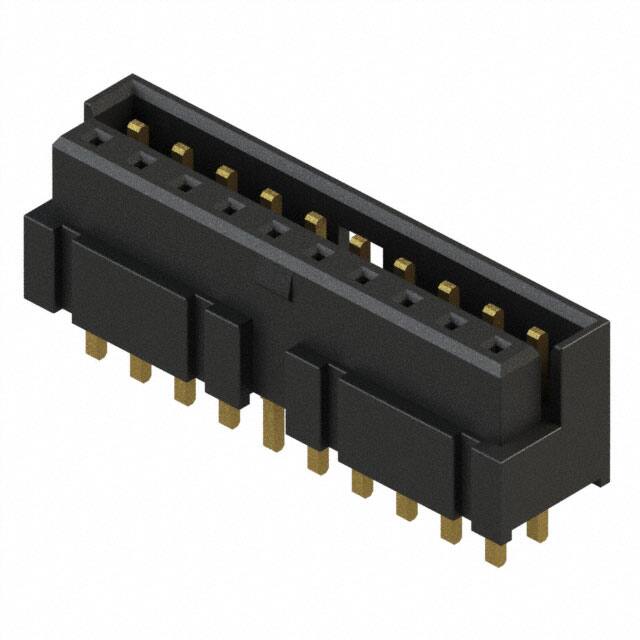

LS2-110-01-L-D

Specifications

Plating Thickness

10μin

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Max Current Rating

5A

Radyasyon Dayanımı

No

Withdrawl Forcemin

.834 N

Mil Conformance

NO

Min. Çalışma Sıcaklığı

-55°C

Contact Finish Thickness

10.0μin 0.25μm

Montaj Tipi

Through Hole

Contact Style

SQ PIN-SKT

Mating Contact Row Spacing

0.079 inch

Housing Material

Polymer

Pitch

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Ambalaj

Tube

Max Voltage Rating Ac

475V

Sıra Sayısı

2

Contact Materials

Bronze

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Gender

Receptacle

Number Of Conductors

ONE

Contact Pattern

RECTANGULAR

Depth

5.27mm

Reliability

COMMERCIAL

Reference Standard

UL

Filter Feature

NO

Connector Type

Self Mating, Non-Gendered

Fabrika Tedarik Süresi

3 Weeks

Terminal

Solder

JESD-609 Kodu

e3

Pozisyon Sayısı

20

Din Conformance

NO

Mixed Contacts

NO

Seri

LS2

Yayın Yılı

2003

Bodyshell Style

SOCKET

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING
